Air Cylinder Mounting Hardware

Cylinder Mounting Hardware Mount Type Pivot Bracket Overall Length 2 7/8 in Product Type Pivot Pin System of Measurement Inch

Cylinder Mounting Hardware Mount Type Pivot Bracket Overall Length 2 1/8 in Product Type Pivot Pin System of Measurement Inch

Clevis Bracket Mount Type Clevis For Bore Diameter 80 mm Body Material Aluminum Overall Length 95 mm Mount Hole Center-to-Center Width 72 mm Overal...

Clevis Bracket Mount Type Clevis For Bore Diameter 100 mm Body Material Aluminum Overall Length 115 mm Mount Hole Center-to-Center Width 89 mm Over...

Clevis Bracket Mount Type Clevis For Bore Diameter 50 mm Body Material Aluminum Overall Length 65 mm Mount Hole Center-to-Center Width 46.5 mm Over...

Clevis Bracket Mount Type Clevis For Bore Diameter 63 mm Body Material Aluminum Overall Length 75 mm Mount Hole Center-to-Center Width 56.5 mm Over...

Cylinder Mount

Clevis Bracket Mount Type Clevis For Bore Diameter 32 mm Body Material Aluminum Overall Length 45 mm Mount Hole Center-to-Center Width 32.5 mm Over...

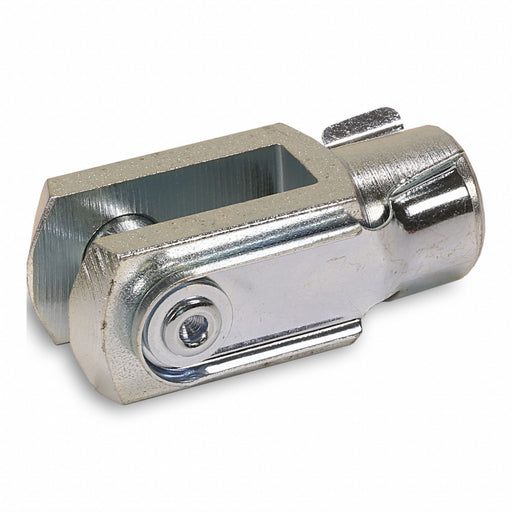

Rod Clevis Mount Type Clevis For Bore Diameter 25 mm Body Material Steel Overall Length 49 mm Overall Width 20 mm Overall Height 20 mm Compatible w...

Rod Clevis Mount Type Clevis For Bore Diameter 20 mm Body Material Steel Overall Length 40.5 mm Overall Width 16 mm Overall Height 16 mm Compatible...

Pneumatic Cylinder

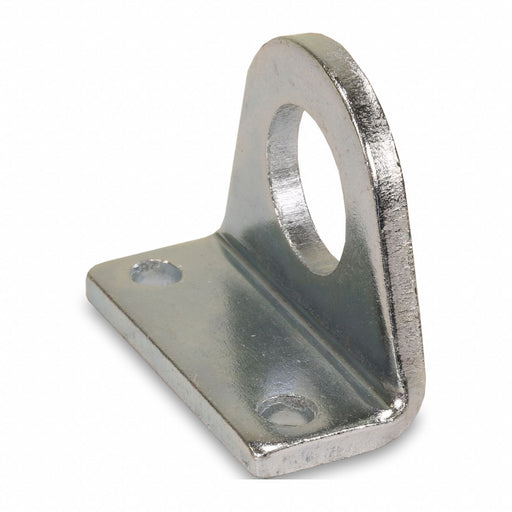

Foot Bracket Mount Type Foot Mount Location Front Rear For Bore Diameter 20 mm 25 mm Body Material Steel Overall Length 54 mm Overall Width 25 mm O...

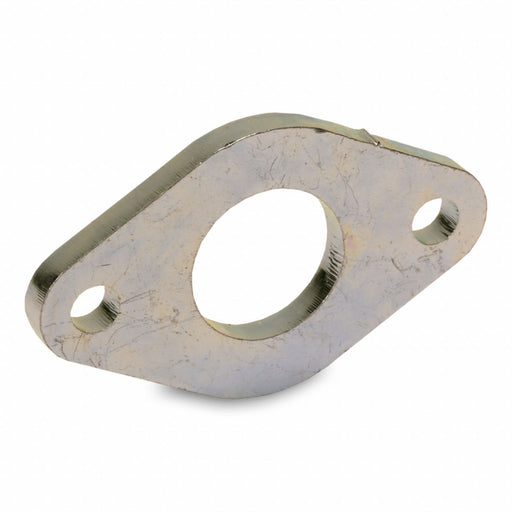

Flange Bracket Mount Type Flange Mount Location Front Rear For Bore Diameter 20 mm 25 mm Body Material Steel Overall Length 66 mm Overall Width 5 m...

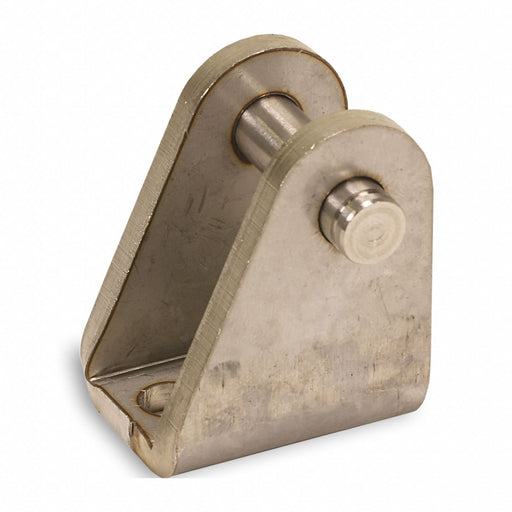

Clevis Bracket Mount Type Clevis Mount Location Rear For Bore Diameter 12 mm 16 mm Body Material Steel Overall Length 25 mm Overall Width 18 mm Ove...

Flange Bracket Mount Type Flange Mount Location Front Rear For Bore Diameter 12 mm 16 mm Body Material Steel Overall Length 52 mm Overall Width 4 m...

Foot Bracket Mount Type Foot Mount Location Front Rear For Bore Diameter 12 mm 16 mm Body Material Steel Overall Length 42 mm Overall Width 20 mm O...

Clevis Bracket Mount Type Clevis Mount Location Rear For Bore Diameter 10 mm Body Material Steel Overall Length 20 mm Overall Width 13 mm Overall H...

Cylinder Mount

Foot Bracket Mount Type Foot Mount Location Front Rear For Bore Diameter 10 mm Body Material Steel Overall Length 35 mm Overall Width 16 mm Overall...

Head and Cap Rectangular Flange Mount Type Flange For Bore Diameter 4 in Body Material Steel Overall Length 6 1/4 in Mount Hole Center-to-Center Wi...

Head and Cap Rectangular Flange Mount Type Flange For Bore Diameter 3 1/4 in Body Material Steel Overall Length 5 1/2 in Mount Hole Center-to-Cente...

Head and Cap Rectangular Flange Mount Type Flange For Bore Diameter 2 1/2 in Body Material Steel Overall Length 4 5/8 in Mount Hole Center-to-Cente...

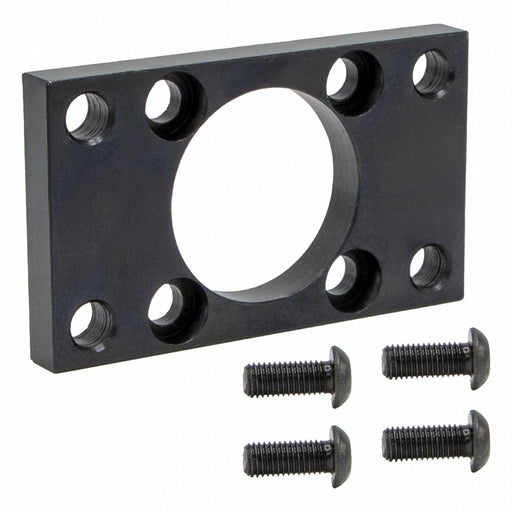

Head and Cap Rectangular Flange Mount Type Flange For Bore Diameter 2 in Body Material Steel Overall Length 4 1/8 in Mount Hole Center-to-Center Wi...

Cylinder Mount
