by MIMECO

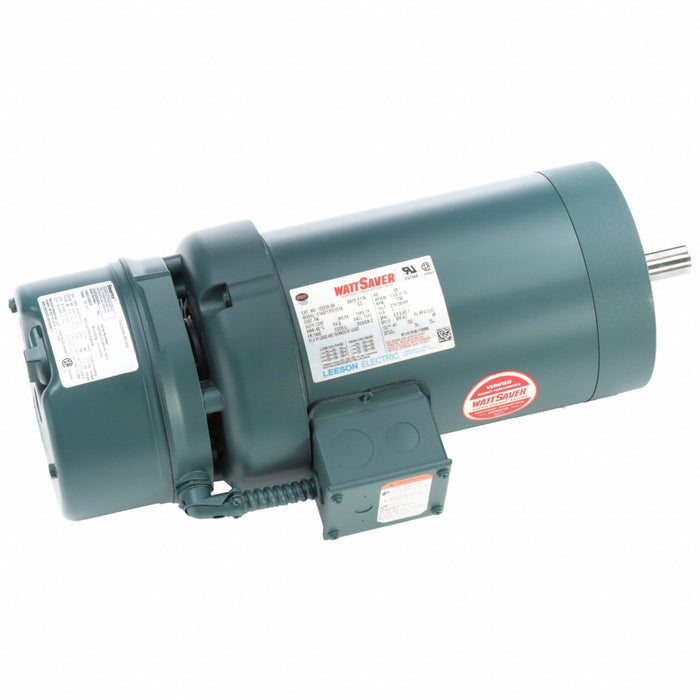

BrakeMotor 1-1/2hp 1750RPM 230/460VAC
SKU 798KN5
Original price
$2,704.90
-
Original price
$2,704.90
Original price
$2,704.90
$2,704.90
-
$2,704.90
Current price
$2,704.90
Brake Motor Three Phase Motor Design Three-Phase 1 1/2 hp HP Nameplate RPM 1 750 RPM No of Speeds 1 Voltage 230/460V AC 4.6-4.8/2.4 A Full Load Amps 145TC Frame Usable @ 208V Usable at 208V Usable @ 200V Not Usable at 200V 60 Hz Hz Motor Service Factor 1.15 Motor Thermal Protection T-Stat Ins. Class F Max Ambient Temp 40 Degrees C Duty Cycle Continuous Motor Shaft Rotation CW/CCW Motor Enclosure Design Totally Enclosed Air-Over Motor Mounting Type C-Face
Standard shipping
Estimated delivery time: 7-10 days
Specifications
