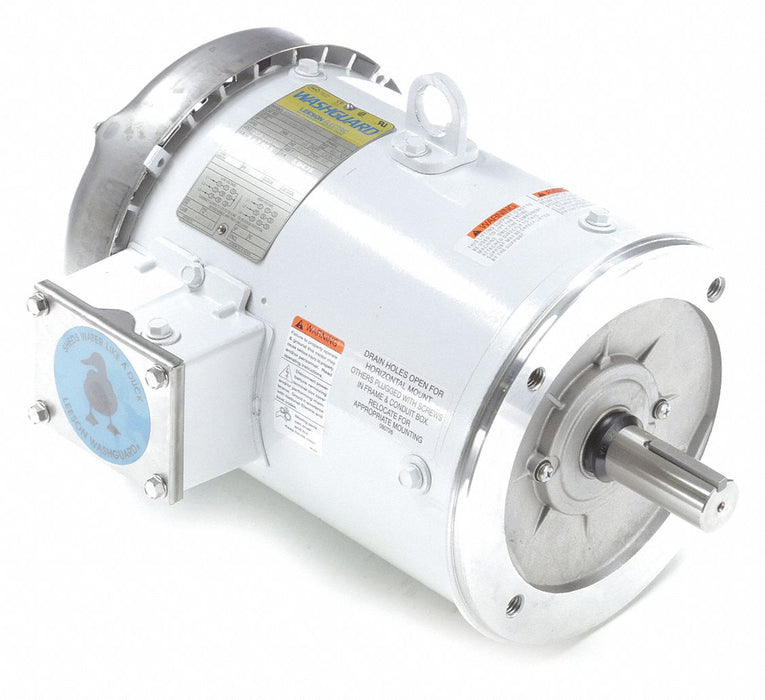

Motor 3 HP 1770 182TC 208-230/460V
SKU 48ZG36
Original price
$1,892.84
-
Original price
$1,892.84
Original price
$1,892.84
$1,892.84
-
$1,892.84
Current price
$1,892.84
Washdown Brake Motor Three Phase Motor Design 3-Phase 3 HP Nameplate RPM 1 770 No of Speeds 1 Voltage 208-230/460V AC Full Load Amps 8.4-7.8/3.9 A 182TC Frame Usable @ 208V Yes Usable @ 200V No 60 Hz Hz Motor Service Factor 1.15 Motor Thermal Protection None Ins. Class F Max Ambient Temp 40 Degrees C Duty Cycle Continuous NEMA Design B Removable Base No Motor Shaft Rotation CWSE Motor Enclosure Design Totally Enclosed Fan-Cooled Motor Mounting Type Face
