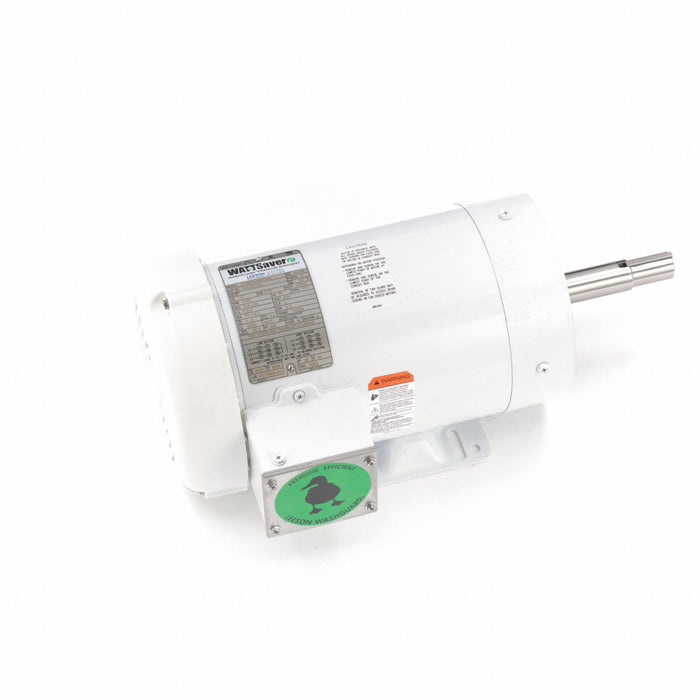

Motor 3 HP 3490 145JM 208-230/460V
SKU 60PV40
Original price
$1,922.80
-
Original price
$1,922.80
Original price
$1,922.80
$1,922.80
-
$1,922.80
Current price
$1,922.80
Washdown Motor Three Phase Motor Design 3-Phase 3 HP Nameplate RPM 3 490 No of Speeds 1 Voltage 208-230/460V AC Full Load Amps 8.8-8.0/4.0 A 145JM Frame Usable @ 208V Yes Usable @ 200V No 60 Hz Motor Service Factor 1.2 Motor Thermal Protection T-Stat Ins. Class F Max Ambient Temp 40 Degrees F Duty Cycle Continuous NEMA Design B Removable Base No Motor Shaft Rotation CW/CCW Motor Enclosure Design Totally Enclosed Fan-Cooled Motor Mounting Type Rigid Base
