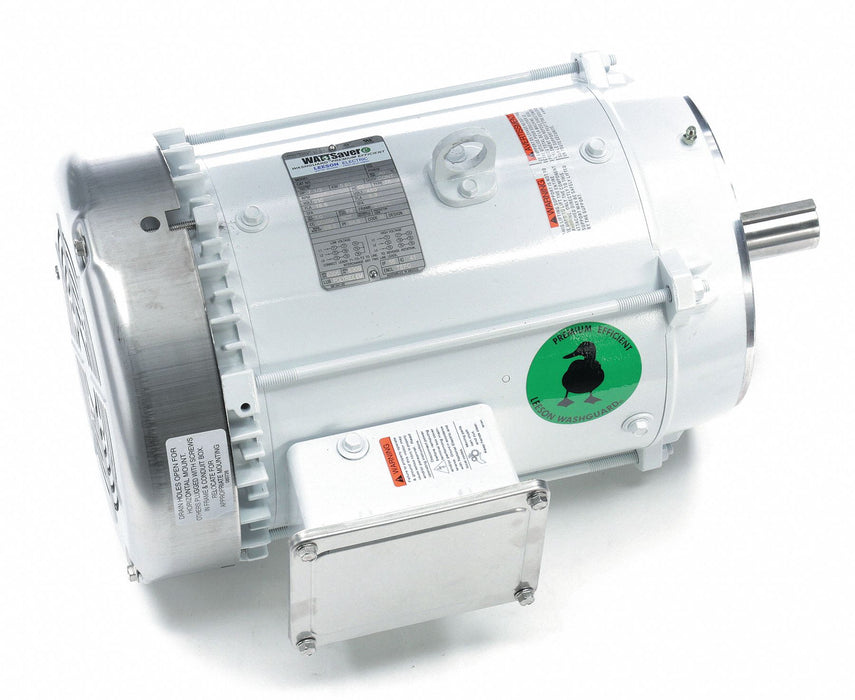

Motor 7 1/2 HP 3525 213TC 230/460V
SKU 48ZG39
Original price
$2,592.31
-
Original price
$2,592.31
Original price
$2,592.31
$2,592.31
-
$2,592.31
Current price
$2,592.31
Washdown Brake Motor Three Phase Motor Design 3-Phase 7 1/2 HP Nameplate RPM 3 525 No of Speeds 1 Voltage 230/460V AC Full Load Amps 18.6/9.3 A 213TC Frame Usable @ 208V No Usable @ 200V No 60 Hz Hz Motor Service Factor 1 Motor Thermal Protection None Ins. Class F Max Ambient Temp 40 Degrees C Duty Cycle Continuous NEMA Design B Motor Shaft Rotation CWSE Motor Enclosure Design Totally Enclosed Fan-Cooled Motor Mounting Type Face Motor Mounting Position Horizontal
