by MIMECO

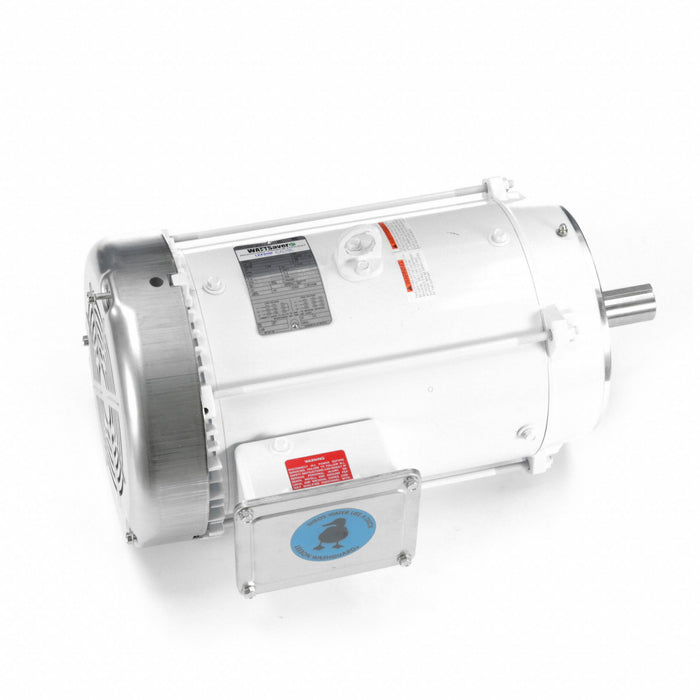

WashdownMotor 10hp 3525RPM 230/460VAC
SKU 798GE0
Original price
$4,112.27
-
Original price
$4,112.27
Original price
$4,112.27
$4,112.27
-
$4,112.27
Current price
$4,112.27
Washdown Motor Three Phase Motor Design Three-Phase 10 hp HP Nameplate RPM 3 525 RPM No of Speeds 1 Voltage 230/460V AC Full Load Amps 23.6/11.8 A 215TC Frame Usable @ 208V Usable at 208V Usable @ 200V Usable at 200V 60/50 Hz Hz Motor Service Factor 1.15 Motor Thermal Protection None Ins. Class F Max Ambient Temp 40 Degrees C Duty Cycle Continuous NEMA Design B Motor Shaft Rotation CW/CCW Motor Enclosure Design Totally Enclosed Fan Cooled Motor Mounting Type C-Face
Standard shipping
Estimated delivery time: 7-10 days
Specifications
