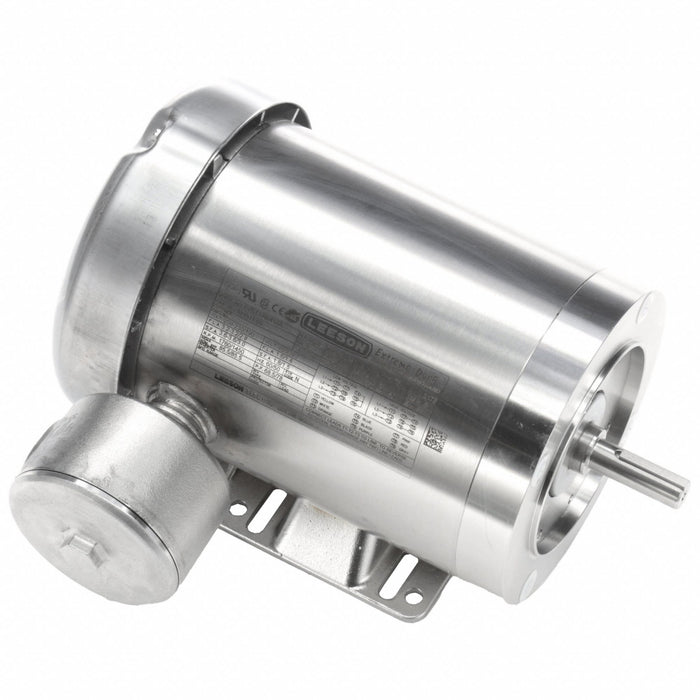

WashdownMotor 1hp 1760RPM 56C 230/460VAC
SKU 798KM3
Original price
$3,132.88
-
Original price
$3,132.88
Original price
$3,132.88
$3,132.88
-
$3,132.88
Current price
$3,132.88
Washdown Motor Three Phase Motor Design Three-Phase 1 hp HP Nameplate RPM 1 760 RPM No of Speeds 1 Voltage 230/460V AC Full Load Amps 3.2/1.6 A 56C Frame Usable @ 208V Usable at 208V Usable @ 200V Not Usable at 200V 60/50 Hz Hz Motor Service Factor 1.15 Motor Thermal Protection None Ins. Class F Max Ambient Temp 40 Degrees C Duty Cycle Continuous NEMA Design B Motor Shaft Rotation CW/CCW Motor Enclosure Design Totally Enclosed Air-Over Motor Mounting Type C-Face
Standard shipping
Estimated delivery time: 7-10 days
