by MIMECO

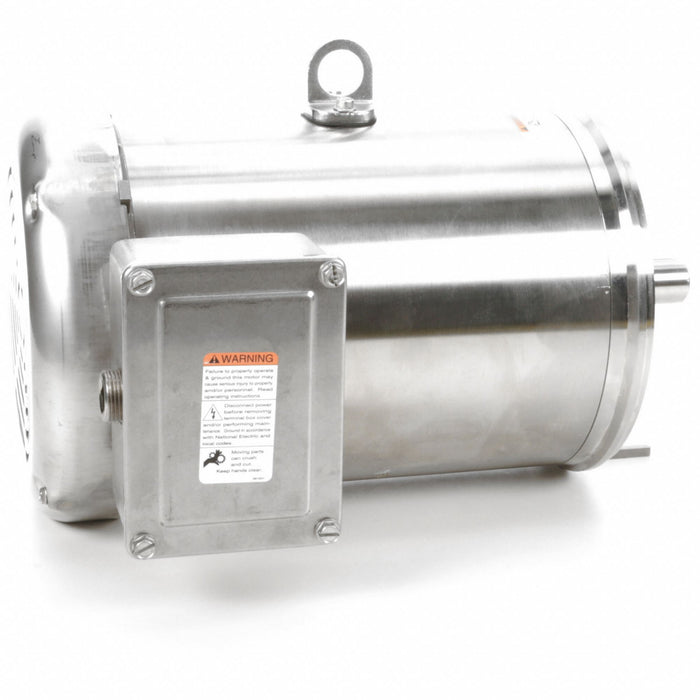

WashdownMotor 5hp 3495RPMTC 230/460VAC
SKU 798GD1
Original price
$3,356.15
-
Original price
$3,356.15
Original price
$3,356.15
$3,356.15
-
$3,356.15
Current price
$3,356.15
Washdown Motor Three Phase Motor Design Three-Phase 5 hp HP Nameplate RPM 3 495 RPM No of Speeds 1 Voltage 230/460V AC Full Load Amps 13.2-12.0/6.0 A 184TC Frame Usable @ 208V Usable at 208V Usable @ 200V Usable at 200V 60/50 Hz Hz Motor Service Factor 1.15 Motor Thermal Protection None Ins. Class F Max Ambient Temp 40 Degrees C Duty Cycle Continuous NEMA Design B Motor Shaft Rotation CW/CCW Motor Enclosure Design Totally Enclosed Fan Cooled Motor Mounting Type C-Face
Standard shipping
Estimated delivery time: 7-10 days
Specifications
