by MIMECO

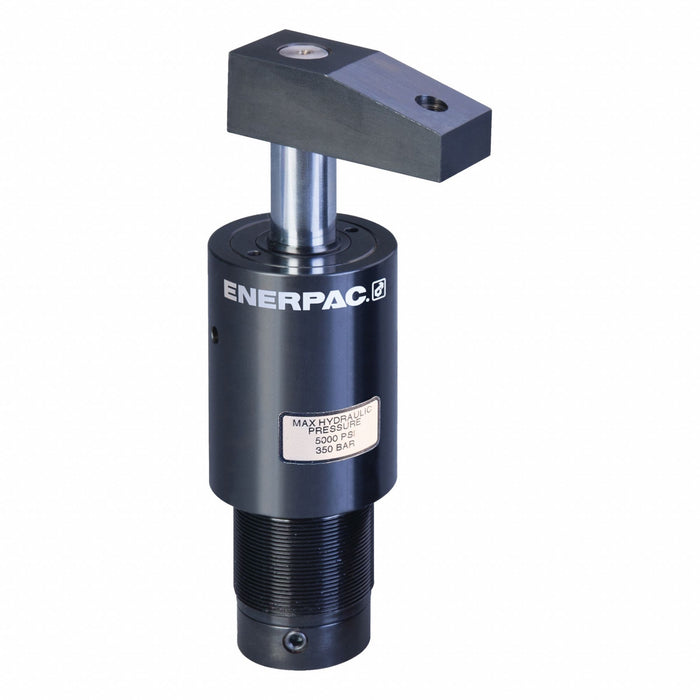

Collet-Lok Swing Cylinder
SKU 857FJ8
Original price
$4,033.91
-
Original price
$4,033.91
Original price
$4,033.91
$4,033.91
-
$4,033.91
Current price
$4,033.91
Collet-Lok Swing Cylinder Swing Body Material Steel Mounting Style Threaded Body Single Acting/Double Acting Double Acting Turns Left Clamping Force 8 500 lbf Total Stroke 1.65 in Effective Area Clamped 2.05 sq in Clamping Stroke 0.39 in Max Pressure 5 000 psi Swing Angle 90 Degrees Port Size #2 SAE Max Oil Flow 600 cu in/min Pressure Range 1 400 to 5 000 psi Extended Height 12.22 in Outside Dia 3.66 in Includes Viton Seal
Standard shipping
Estimated delivery time: 7-10 days
Specifications
