by MIMECO

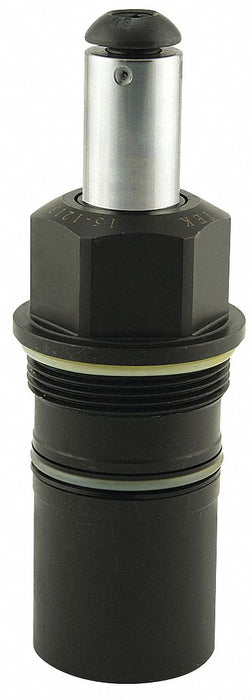

Hyd. Clamp Swing Cartridge Mount 2600 lb
SKU 33RZ95
Original price
$918.49
-
Original price
$918.49
Original price
$918.49
$918.49
-
$918.49
Current price
$918.49
Swing Clamp Hydraulic Cylinders Single Acting/Double Acting Double Acting Turns Straight Clamping Force 2 600 lbf Total Stroke 1.16 in Effective Area Clamped 0.626 sq in Clamping Stroke 1.16 in Max Pressure 5 000 psi Swing Angle 90 Degrees Port Size #4 SAE Oil Capacity Clamped 0.726 cu in Oil Capacity Unclamped 1.423 cu in Max Oil Flow 1.5 gpm Pressure Range 500 to 5000 psi Extended Height 7.3 in Outside Dia 1.751 in Mounting Hole Dia 1.96 in Mounting Thread 1-7/8 In.-12
Standard shipping
Estimated delivery time: 7-10 days
Specifications
