by MIMECO

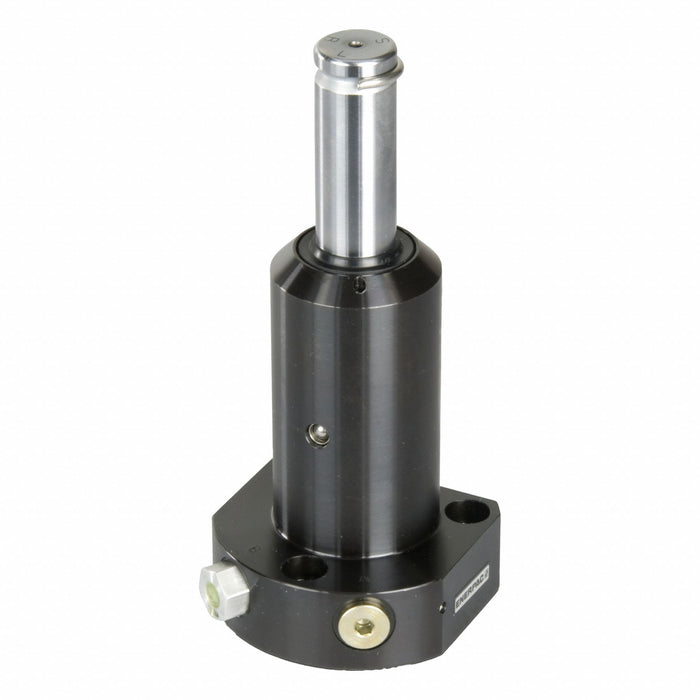

Swing Clamp
SKU 857FD3
Original price
$1,629.98
-
Original price
$1,629.98
Original price
$1,629.98
$1,629.98
-
$1,629.98
Current price
$1,629.98
Swing Clamp Swing Body Material Steel Mounting Style Lower Flange Single Acting/Double Acting Single Acting Turns Left Clamping Force 3 900 lbf Total Stroke 1.16 in Effective Area Clamped 1.10 sq in Clamping Stroke 0.55 in Max Pressure 5 000 psi Swing Angle 90 Degrees Port Size #4 SAE Oil Capacity Clamped 1.22 cu in Max Oil Flow 140 cu in/min Pressure Range 500 to 5 000 psi Extended Height 8.96 in Outside Dia 2.51 in Mounting Hole Dia 0.33 in
Standard shipping
Estimated delivery time: 7-10 days
Specifications
