by MIMECO

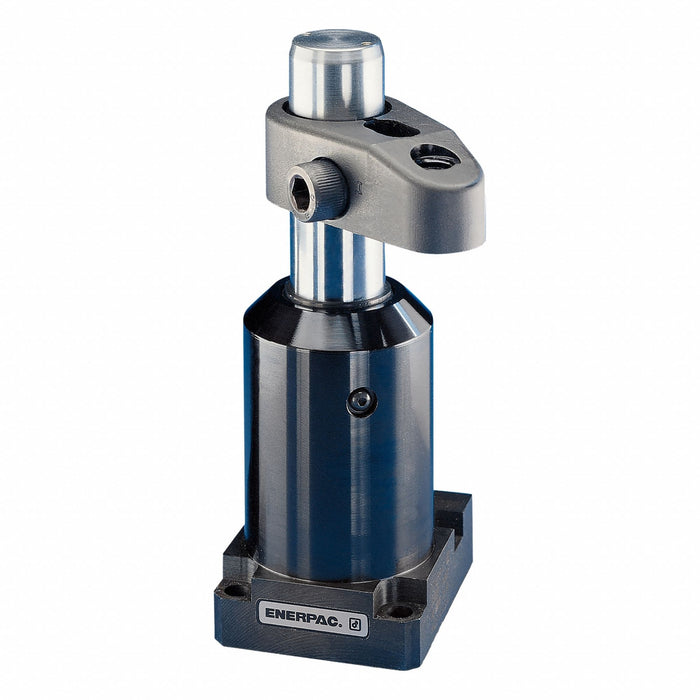

Swing Clamp
SKU 857FD5
Original price
$1,629.98
-
Original price
$1,629.98
Original price
$1,629.98
$1,629.98
-
$1,629.98
Current price
$1,629.98
Swing Clamp Swing Body Material Steel Mounting Style Threaded Body Single Acting/Double Acting Double Acting Turns Right Clamping Force 18.7 kN Total Stroke 29.5 mm Effective Area Clamped 7.10 cu cm Clamping Stroke 14 mm Max Pressure 350 bar Swing Angle 90 Degrees Port Size G.250-19 BSPP Effective Area Unclamped 15.26 cu cm Oil Capacity Clamped 19.99 cc Oil Capacity Unclamped 42.61 cc Max Oil Flow 2.3 lpm Pressure Range 35 to 350 bar Extended Height 204.5 mm
Standard shipping
Estimated delivery time: 7-10 days
Specifications
