by MIMECO

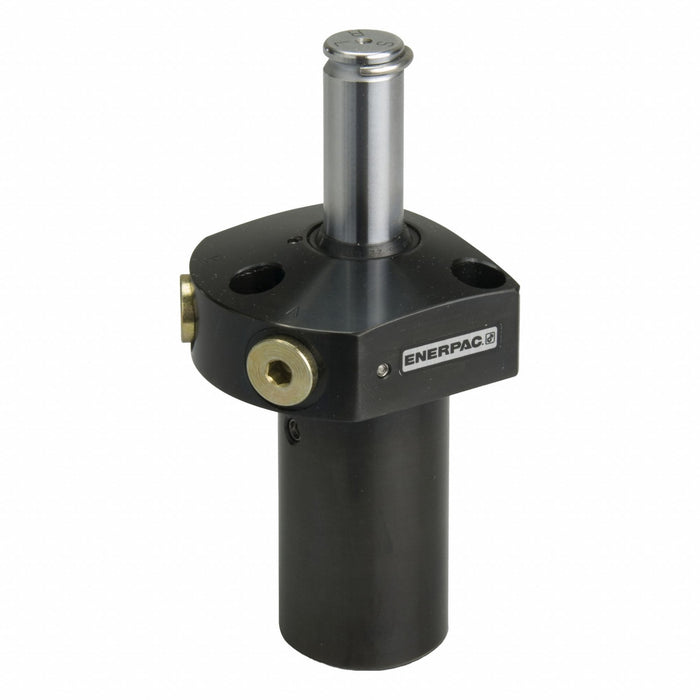

Swing Clamp
SKU 857FE7
Original price
$1,189.69
-
Original price
$1,189.69
Original price
$1,189.69
$1,189.69
-
$1,189.69
Current price
$1,189.69
Swing Clamp Swing Body Material Steel Mounting Style Upper Flange Single Acting/Double Acting Double Acting Turns Right Clamping Force 2 025 lbf Total Stroke 0.9 in Effective Area Clamped 0.49 sq in Clamping Stroke 0.47 in Max Pressure 5 000 psi Swing Angle 90 Degrees Port Size G 1/4 in Effective Area Unclamped 1.25 sq in Oil Capacity Clamped 0.42 cu in Oil Capacity Unclamped 1.08 cu in Max Oil Flow 60 cu in/min Pressure Range 500 to 5 000 psi Extended Height 6.58 in
Standard shipping
Estimated delivery time: 7-10 days
Specifications
