by MIMECO

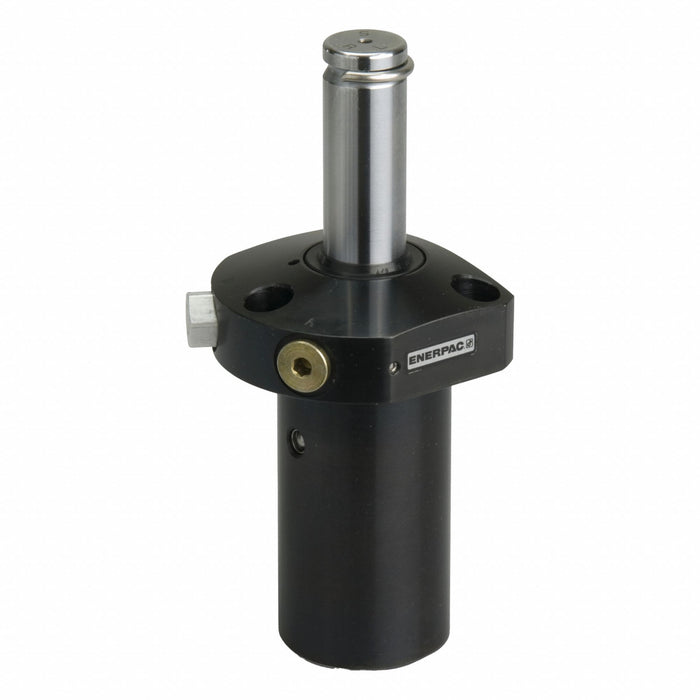

Swing Clamp
SKU 857FF0
Original price
$1,867.65
-
Original price
$1,867.65
Original price
$1,867.65
$1,867.65
-
$1,867.65
Current price
$1,867.65
Swing Clamp Swing Body Material Steel Mounting Style Upper Flange Single Acting/Double Acting Single Acting Turns Right Clamping Force 7 450 lbf Total Stroke 1.28 in Effective Area Clamped 1.92 sq in Clamping Stroke 0.63 in Max Pressure 5 000 psi Swing Angle 90 Degrees Port Size #4 SAE Oil Capacity Clamped 2.27 cu in Max Oil Flow 240 cu in/min Pressure Range 500 to 5 000 psi Extended Height 9.81 in Outside Dia 3.02 in Mounting Hole Dia 0.43 in
Standard shipping
Estimated delivery time: 7-10 days
Specifications
