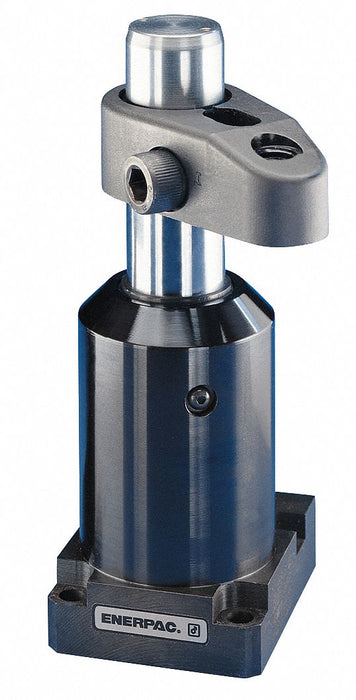

Swing Cylinder Lower Flange 4200 lb.
SKU 26VZ44
Original price
$1,719.28
-
Original price
$1,719.28
Original price
$1,719.28
$1,719.28
-
$1,719.28
Current price
$1,719.28
Swing Clamp Hydraulic Cylinder Swing Body Material Steel Mounting Style Lower Flange Single Acting/Double Acting Double Acting Turns Right Clamping Force 4 200 lbf Total Stroke 1.16 in Effective Area Clamped 1.10 sq in Clamping Stroke 0.55 in Max Pressure 5 000 psi Series SLR Swing Angle 90 Degrees Port Size 0.4375-20 UNF-2B Effective Area Unclamped 2.35 sq in Oil Capacity Clamped 1.22 cu in Oil Capacity Unclamped 2.6 cu in Max Oil Flow 140 cu in/min
Standard shipping
Estimated delivery time: 7-10 days
Specifications
