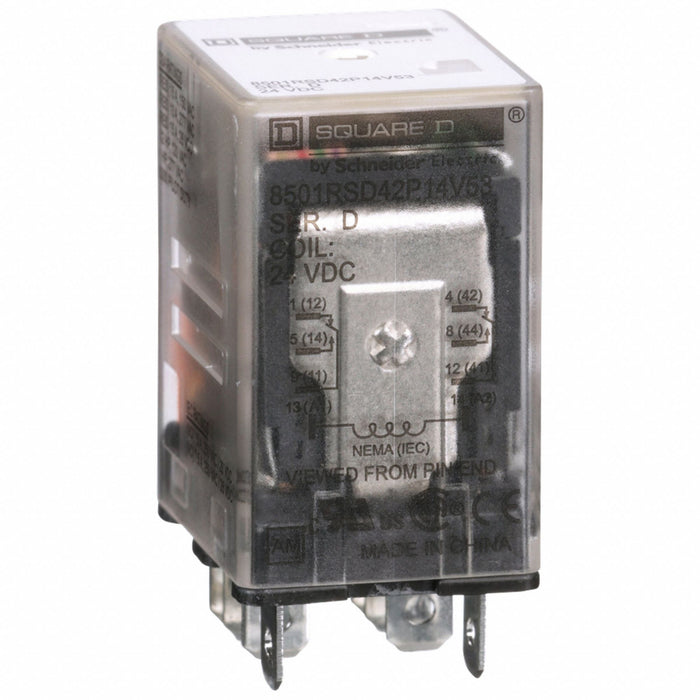

General Purpose Relay 24VDC 15A 8Pins
SKU 2DW76
Original price
$82.35
-
Original price
$82.35
Original price
$82.35
$82.35
-
$82.35
Current price
$82.35
General Purpose Relay Base Shape Square Coil Voltage 24V DC Contact Form DPDT Current Rating 15 A Electrical Connection Quick-Connect Flat Pin Width 0.18 in Number of Pins 8 Pin Shape Flat Sealing Enclosed Status Indicator LED Indicator Mechanical Flag Contact Rating (AC) 15 A @ 120V 15 A @ 277V Contact Rating (DC) 15 A @ 24V Horsepower @ 120V AC 1/2 hp Horsepower @ 240V AC Not Rated Mounting Style Socket Push-To-Test Method No Button Body Depth 1.65 in Body Height 1.07 in
Standard shipping
Estimated delivery time: 7-10 days
Specifications
