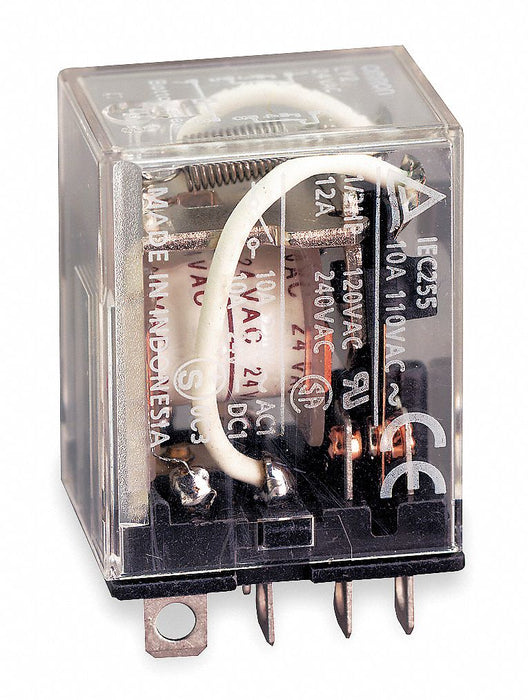

H8009 General Purpose Relay 24VAC 10A 8Pins
SKU 2W929
Original price
$15.54
-
Original price
$15.54
Original price
$15.54
$15.54
-
$15.54
Current price
$15.54
H8009 General Purpose Relay Base Shape Square Coil Voltage 24V AC Contact Form DPDT Current Rating 10 A Electrical Connection Quick-Connect Flat Pin Width 0.197 in Number of Pins 8 Pin Shape Flat Sealing Enclosed Status Indicator No Indicator Contact Rating (AC) 10 A @ 120V 7.5 A @ 120V Contact Rating (DC) 10 A @ 24V 5 A @ 24V Horsepower @ 120V AC Not Rated Horsepower @ 240V AC Not Rated Mounting Style Plug-In Push-To-Test Method No Button Body Depth 1.42 in Body Height 1.1 in
Standard shipping
Estimated delivery time: 7-10 days
Specifications
