Pneumatic Safety Valves

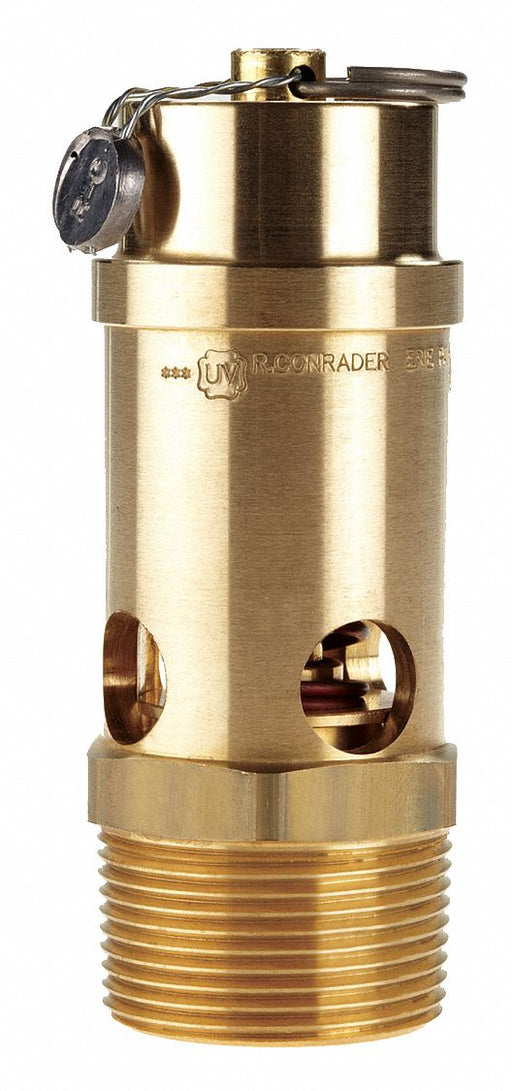

Safety Valve Soft Seat (M)NPT Inlet (In.) 1 1/4 in (F)NPT Outlet (In.) 1 1/4 in Preset Setting (PSI) 275 psi 2 261 cfm Rated CFM @ Set Pressure Max...

Safety Valve Soft Seat (M)NPT Inlet (In.) 1 1/4 in (F)NPT Outlet (In.) 1 1/4 in Preset Setting (PSI) 250 psi 2 065 cfm Rated CFM @ Set Pressure Max...

Safety Valve Soft Seat (M)NPT Inlet (In.) 1 1/4 in (F)NPT Outlet (In.) 1 1/4 in Preset Setting (PSI) 225 psi 1 869 cfm Rated CFM @ Set Pressure Max...

Safety Valve Soft Seat (M)NPT Inlet (In.) 1 1/4 in (F)NPT Outlet (In.) 1 1/4 in Preset Setting (PSI) 200 psi 1 673 cfm Rated CFM @ Set Pressure Max...

Safety Valve Soft Seat (M)NPT Inlet (In.) 1 1/4 in (F)NPT Outlet (In.) 1 1/4 in Preset Setting (PSI) 175 psi 1 477 cfm Rated CFM @ Set Pressure Max...

Safety Valve Soft Seat (M)NPT Inlet (In.) 1 1/4 in (F)NPT Outlet (In.) 1 1/4 in Preset Setting (PSI) 150 psi 1 281 cfm Rated CFM @ Set Pressure Max...

Safety Valve Soft Seat (M)NPT Inlet (In.) 1 1/4 in (F)NPT Outlet (In.) 1 1/4 in Preset Setting (PSI) 125 psi 1 085 cfm Rated CFM @ Set Pressure Max...

Safety Valve Soft Seat (M)NPT Inlet (In.) 1 1/4 in (F)NPT Outlet (In.) 1 1/4 in Preset Setting (PSI) 100 psi 889 cfm Rated CFM @ Set Pressure Max T...

Safety Valve Soft Seat (M)NPT Inlet (In.) 1 1/4 in (F)NPT Outlet (In.) 1 1/4 in Preset Setting (PSI) 75 psi 693 cfm Rated CFM @ Set Pressure Max Te...

Safety Valve Soft Seat (M)NPT Inlet (In.) 1 1/4 in (F)NPT Outlet (In.) 1 1/4 in Preset Setting (PSI) 60 psi 575 cfm Rated CFM @ Set Pressure Max Te...

Safety Valve Soft Seat (M)NPT Inlet (In.) 1 1/4 in (F)NPT Outlet (In.) 1 1/4 in Preset Setting (PSI) 50 psi 496 cfm Rated CFM @ Set Pressure Max Te...

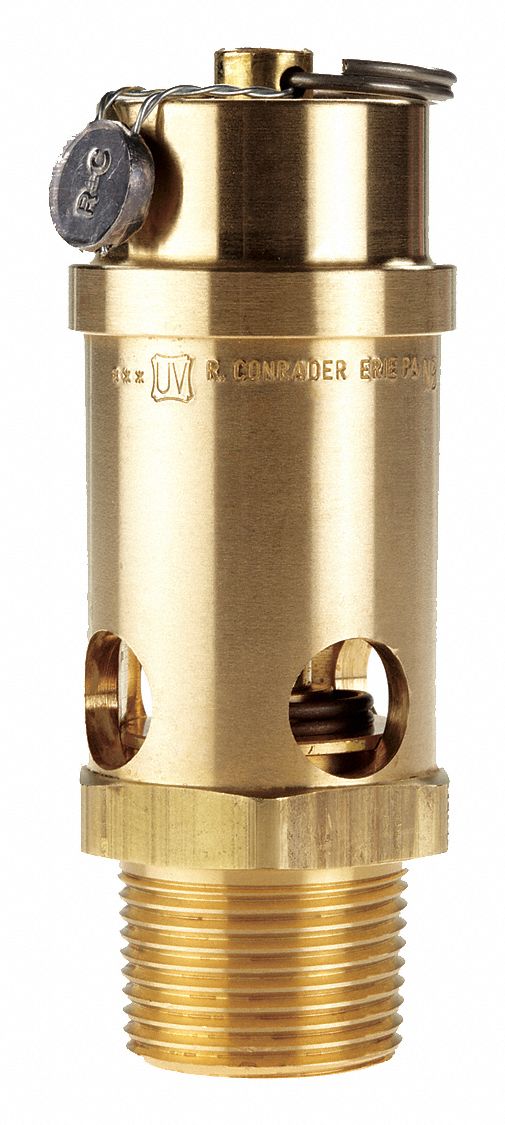

Safety Valve Soft Seat (M)NPT Inlet (In.) 1 in (F)NPT Outlet (In.) 1 in Preset Setting (PSI) 125 psi 1 085 cfm Rated CFM @ Set Pressure Max Temp (F...

Safety Valve Soft Seat (M)NPT Inlet (In.) 1 in (F)NPT Outlet (In.) 1 in Preset Setting (PSI) 100 psi 889 cfm Rated CFM @ Set Pressure Max Temp (F) ...

Safety Valve Soft Seat (M)NPT Inlet (In.) 1 in (F)NPT Outlet (In.) 1 in Preset Setting (PSI) 75 psi 693 cfm Rated CFM @ Set Pressure Max Temp (F) 4...

Safety Valve Soft Seat (M)NPT Inlet (In.) 1 in (F)NPT Outlet (In.) 1 in Preset Setting (PSI) 60 psi 575 cfm Rated CFM @ Set Pressure Max Temp (F) 4...

Safety Valve Soft Seat (M)NPT Inlet (In.) 1 in (F)NPT Outlet (In.) 1 in Preset Setting (PSI) 50 psi 496 cfm Rated CFM @ Set Pressure Max Temp (F) 4...

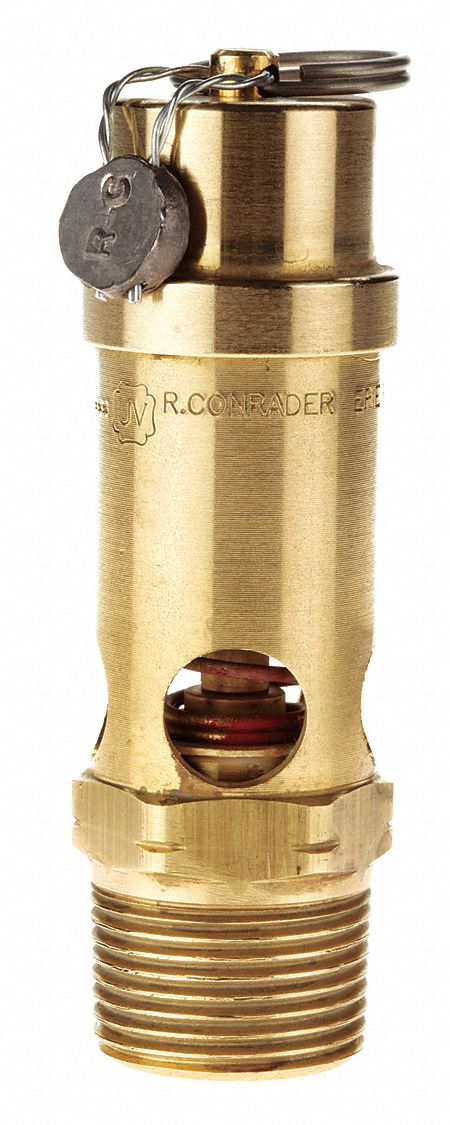

Safety Valve Soft Seat (M)NPT Inlet (In.) 3/4 in (F)NPT Outlet (In.) Not Applicable Preset Setting (PSI) 300 psi 1 154 cfm Rated CFM @ Set Pressure...

Safety Valve Soft Seat (M)NPT Inlet (In.) 3/4 in (F)NPT Outlet (In.) 3/4 in Preset Setting (PSI) 275 psi 1 062 cfm Rated CFM @ Set Pressure Max Tem...

Safety Valve Soft Seat (M)NPT Inlet (In.) 3/4 in (F)NPT Outlet (In.) 3/4 in Preset Setting (PSI) 250 psi 970 cfm Rated CFM @ Set Pressure Max Temp ...

Safety Valve Soft Seat (M)NPT Inlet (In.) 3/4 in (F)NPT Outlet (In.) 3/4 in Preset Setting (PSI) 225 psi 878 cfm Rated CFM @ Set Pressure Max Temp ...

Safety Valve Soft Seat (M)NPT Inlet (In.) 3/4 in (F)NPT Outlet (In.) 3/4 in Preset Setting (PSI) 200 psi 786 cfm Rated CFM @ Set Pressure Max Temp ...

Safety Valve Soft Seat (M)NPT Inlet (In.) 3/4 in (F)NPT Outlet (In.) 3/4 in Preset Setting (PSI) 175 psi 694 cfm Rated CFM @ Set Pressure Max Temp ...

Safety Valve Soft Seat (M)NPT Inlet (In.) 3/4 in (F)NPT Outlet (In.) Not Applicable Preset Setting (PSI) 150 psi 601 cfm Rated CFM @ Set Pressure M...

Safety Valve Soft Seat (M)NPT Inlet (In.) 3/4 in (F)NPT Outlet (In.) 3/4 in Preset Setting (PSI) 125 psi 509 cfm Rated CFM @ Set Pressure Max Temp ...
