Pneumatic Safety Valves

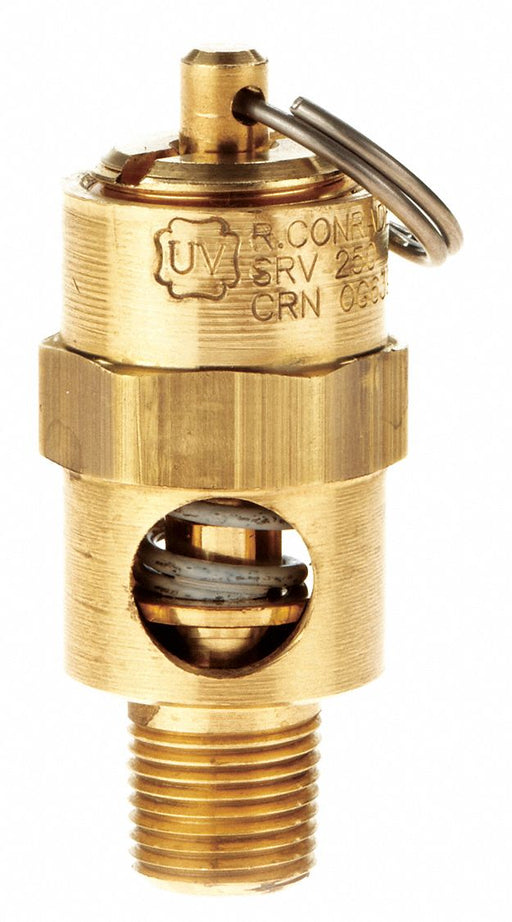

Safety Valve Soft Seat (M)NPT Inlet (In.) 1/8 in (F)NPT Outlet (In.) 1/8 in Preset Setting (PSI) 125 psi 112 cfm Rated CFM @ Set Pressure Max Temp ...

Safety Valve Soft Seat (M)NPT Inlet (In.) 1/8 in (F)NPT Outlet (In.) 1/8 in Preset Setting (PSI) 100 psi 92 cfm Rated CFM @ Set Pressure Max Temp (...

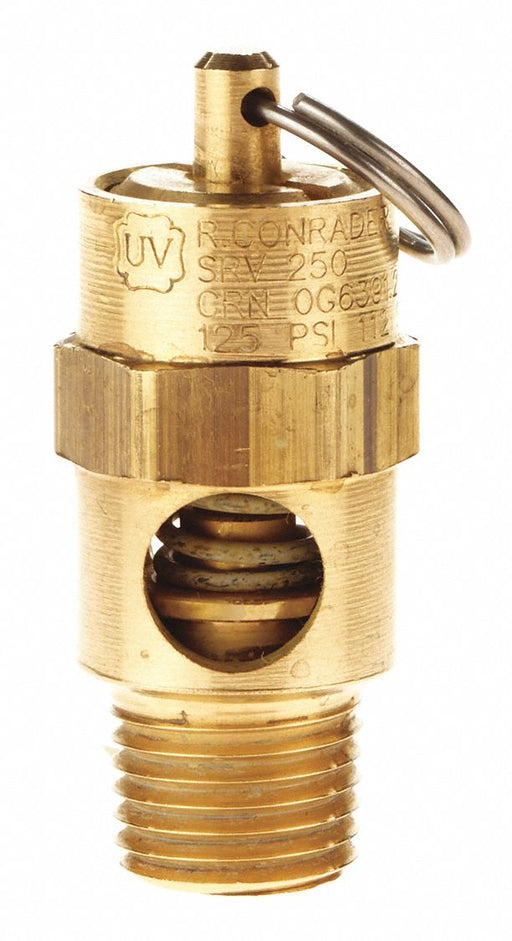

Safety Valve Soft Seat (M)NPT Inlet (In.) 1/4 in (F)NPT Outlet (In.) 1/4 in Preset Setting (PSI) 75 psi 71 cfm Rated CFM @ Set Pressure Max Temp (F...

Safety Valve Soft Seat (M)NPT Inlet (In.) 1/4 in (F)NPT Outlet (In.) 1/4 in Preset Setting (PSI) 50 psi 51 cfm Rated CFM @ Set Pressure Max Temp (F...

Safety Valve Soft Seat (M)NPT Inlet (In.) 1/4 in (F)NPT Outlet (In.) 1/4 in Preset Setting (PSI) 300 psi 255 cfm Rated CFM @ Set Pressure Max Temp ...

Safety Valve Soft Seat (M)NPT Inlet (In.) 1/4 in (F)NPT Outlet (In.) 1/4 in Preset Setting (PSI) 275 psi 234 cfm Rated CFM @ Set Pressure Max Temp ...

Safety Valve Soft Seat (M)NPT Inlet (In.) 1/4 in (F)NPT Outlet (In.) 1/4 in Preset Setting (PSI) 250 psi 214 cfm Rated CFM @ Set Pressure Max Temp ...

Safety Valve Soft Seat (M)NPT Inlet (In.) 1/4 in (F)NPT Outlet (In.) 1/4 in Preset Setting (PSI) 225 psi 194 cfm Rated CFM @ Set Pressure Max Temp ...

Safety Valve Soft Seat (M)NPT Inlet (In.) 1/4 in (F)NPT Outlet (In.) 1/4 in Preset Setting (PSI) 175 psi 153 cfm Rated CFM @ Set Pressure Max Temp ...

Safety Valve Soft Seat (M)NPT Inlet (In.) 1/4 in (F)NPT Outlet (In.) Not Applicable Preset Setting (PSI) 200 psi 173 cfm Rated CFM @ Set Pressure M...

Safety Valve Soft Seat (M)NPT Inlet (In.) 1/4 in (F)NPT Outlet (In.) 1/4 in Preset Setting (PSI) 150 psi 132 cfm Rated CFM @ Set Pressure Max Temp ...

Safety Valve Soft Seat (M)NPT Inlet (In.) 1/4 in (F)NPT Outlet (In.) 1/4 in Preset Setting (PSI) 100 psi 92 cfm Rated CFM @ Set Pressure Max Temp (...

Safety Valve Soft Seat (M)NPT Inlet (In.) 1/4 in (F)NPT Outlet (In.) 1/4 in Preset Setting (PSI) 125 psi 112 cfm Rated CFM @ Set Pressure Max Temp ...

Safety Valve Soft Seat (M)NPT Inlet (In.) 1/4 in (F)NPT Outlet (In.) 1/4 in Preset Setting (PSI) 60 psi 59 cfm Rated CFM @ Set Pressure Max Temp (F...

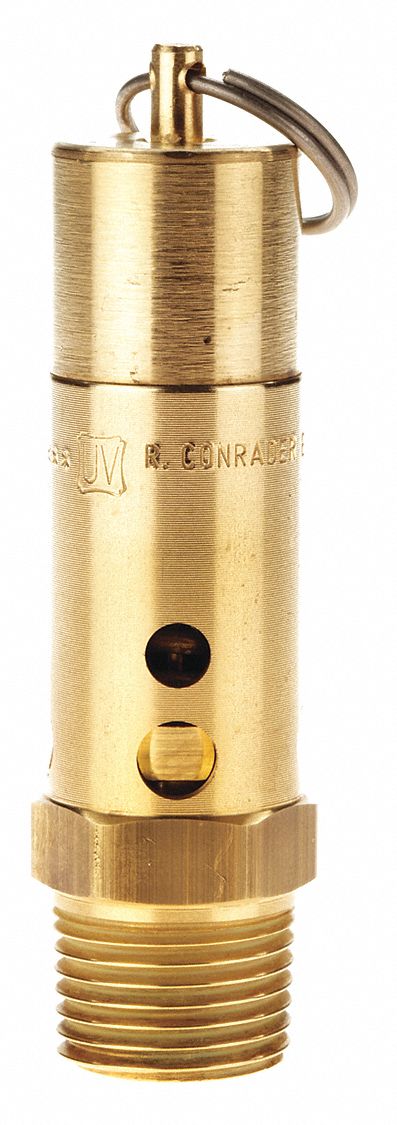

Safety Valve Hard Seat (M)NPT Inlet (In.) 1/2 in (F)NPT Outlet (In.) 1/2 in Preset Setting (PSI) 200 psi 391 cfm Rated CFM @ Set Pressure Max Temp ...

Safety Valve Hard Seat (M)NPT Inlet (In.) 1/2 in (F)NPT Outlet (In.) 1/2 in Preset Setting (PSI) 200 psi 391 cfm Rated CFM @ Set Pressure Max Temp ...

Safety Valve Hard Seat (M)NPT Inlet (In.) 1/2 in (F)NPT Outlet (In.) 1/2 in Preset Setting (PSI) 175 psi 346 cfm Rated CFM @ Set Pressure Max Temp ...

Safety Valve Hard Seat (M)NPT Inlet (In.) 1/2 in (F)NPT Outlet (In.) 1/2 in Preset Setting (PSI) 100 psi 208 cfm Rated CFM @ Set Pressure Max Temp ...

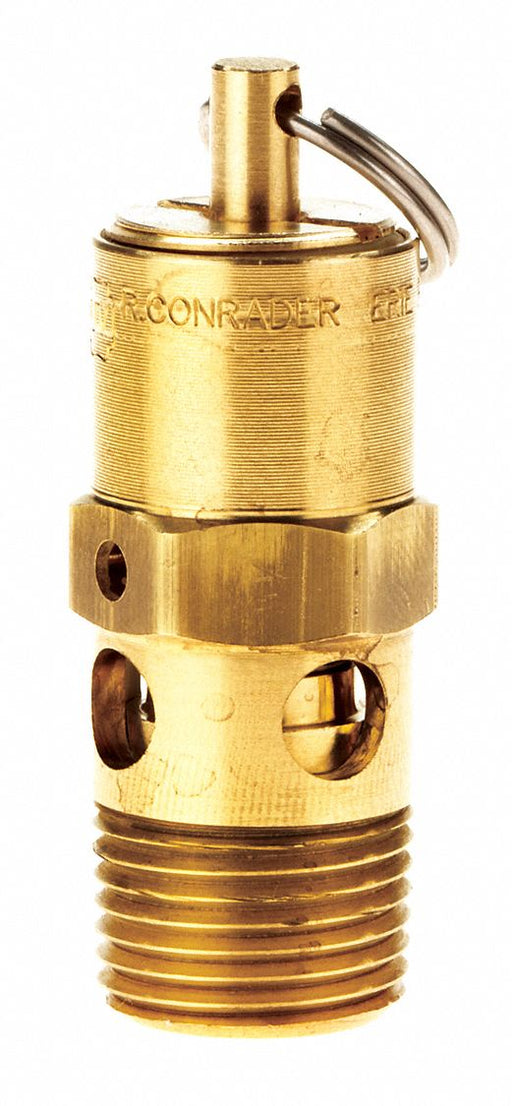

Safety Valve Hard Seat (M)NPT Inlet (In.) 3/8 in (F)NPT Outlet (In.) 3/8 in Preset Setting (PSI) 75 psi 69 cfm Rated CFM @ Set Pressure Max Temp (F...

Safety Valve Hard Seat (M)NPT Inlet (in) 3/8 in (F)NPT Outlet (in) 3/8 in Preset Setting (PSI) 60 psi 58 cfm Rated CFM @ Set Pressure Max Temp (F) ...

Safety Valve Hard Seat (M)NPT Inlet (In.) 3/8 in (F)NPT Outlet (In.) 3/8 in Preset Setting (PSI) 50 psi 50 cfm Rated CFM @ Set Pressure Max Temp (F...

Safety Valve Hard Seat (M)NPT Inlet (In.) 3/8 in (F)NPT Outlet (In.) 3/8 in Preset Setting (PSI) 300 psi 248 cfm Rated CFM @ Set Pressure Max Temp ...

Safety Valve Hard Seat (M)NPT Inlet (In.) 3/8 in (F)NPT Outlet (In.) 3/8 in Preset Setting (PSI) 275 psi 228 cfm Rated CFM @ Set Pressure Max Temp ...

Safety Valve Hard Seat (M)NPT Inlet (In.) 3/8 in (F)NPT Outlet (In.) 3/8 in Preset Setting (PSI) 250 psi 208 cfm Rated CFM @ Set Pressure Max Temp ...
