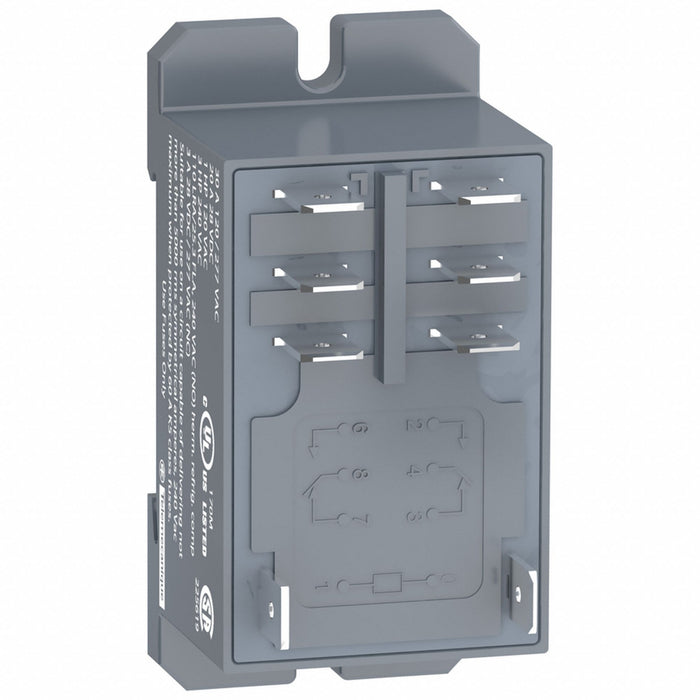

H8135 EnclosedPower Relay 120VAC DPDT 8Pins
SKU 1DPR1
Original price
$21.08
-
Original price
$21.08
Original price
$21.08
$21.08
-
$21.08
Current price
$21.08
H8135 Enclosed Power Relay Base Shape Square Coil Voltage 120V AC Contact Form DPDT Current Rating 30 A Electrical Connection 1/4 in Tab Terminal Flat Pin Width 0.25 in Number of Pins 8 Sealing Sealed Status Indicator No Indicator Contact Rating (AC) 3 A @ 250/277V (NC) 30 A @ 250/277V (NO) Contact Rating (DC) 20 A @ 28V (NO) 25 A @ 28V (NO) 3 A @ 28V (NC) Horsepower @ 120V AC 1 hp Horsepower @ 240V AC 3 hp Mounting Style DIN Rail Top Flange Push-To-Test Method No Button
