by MIMECO

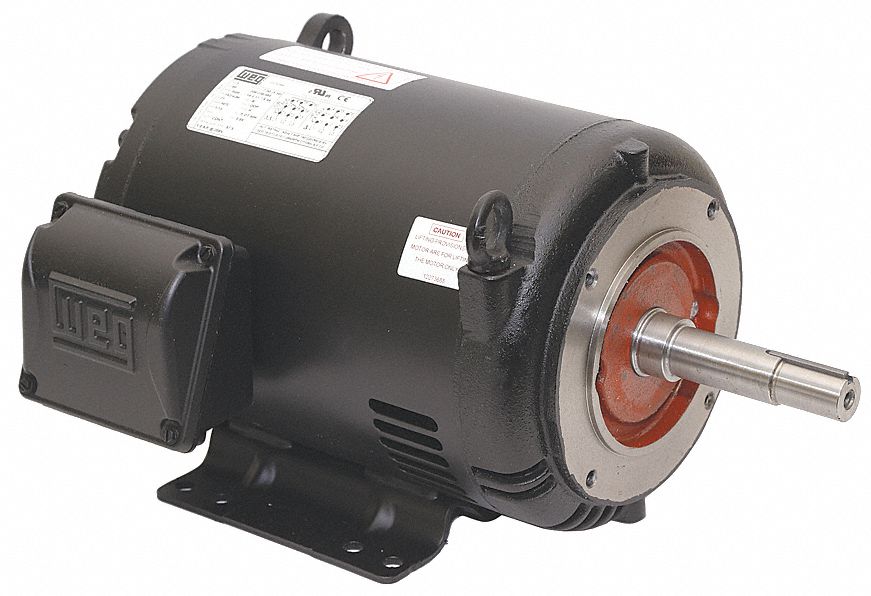

Motor 20 HP 3525 rpm 208-230/460V
SKU 33HU08
Original price
$2,888.92
-
Original price
$2,888.92
Original price
$2,888.92
$2,888.92
-
$2,888.92
Current price
$2,888.92
Close-Coupled Pump Motor Body Dia 12.1 in Bolt Circle Dia 5 5/8 in CC Number CC029A Conduit Box Location Exterior Conduit Box Position F1 Duty Cycle Continuous Frame 254/6JP Hz 60 Hz Full Load Amps 52.6-47.6/23.8 Height 12 in HP 20 HP @ 50Hz 20 Ins. Class F Inverter Rated Yes Inverter Rating 1000 1 Length Less Shaft 16 11/16 in Manufacturers Warranty Length 3 yr Max Ambient Temp 40 Degrees C Motor Application Pump Motor Bearings Ball Motor Design 3-Phase
Standard shipping
Estimated delivery time: 7-10 days
Specifications
