by MIMECO

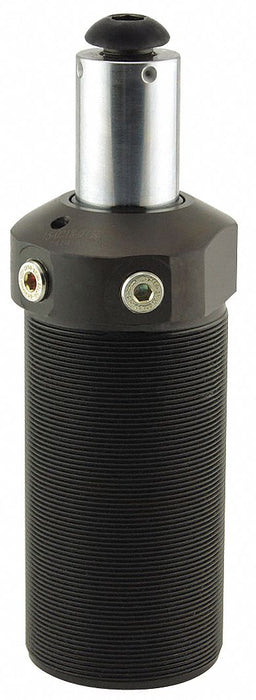

Hydraulic Clamp Swing Threaded 5000 lb.
SKU 33RZ88
Original price
$1,132.47
-
Original price
$1,132.47
Original price
$1,132.47
$1,132.47
-
$1,132.47
Current price
$1,132.47
Swing Clamp Hydraulic Cylinders Single Acting/Double Acting Double Acting Turns Right Clamping Force 5 000 lbf Total Stroke 1.66 in Effective Area Clamped 1.178 sq in Clamping Stroke 0.63 in Max Pressure 5 000 psi Swing Angle 90 Degrees Port Size #4 SAE Oil Capacity Clamped 1.955 cu in Oil Capacity Unclamped 3.992 cu in Max Oil Flow 1.5 gpm Pressure Range 500 to 5000 psi Extended Height 9.96 in Outside Dia 2.5 in Mounting Thread 2-1/2 In.-16
Standard shipping
Estimated delivery time: 7-10 days
Specifications
