by MIMECO

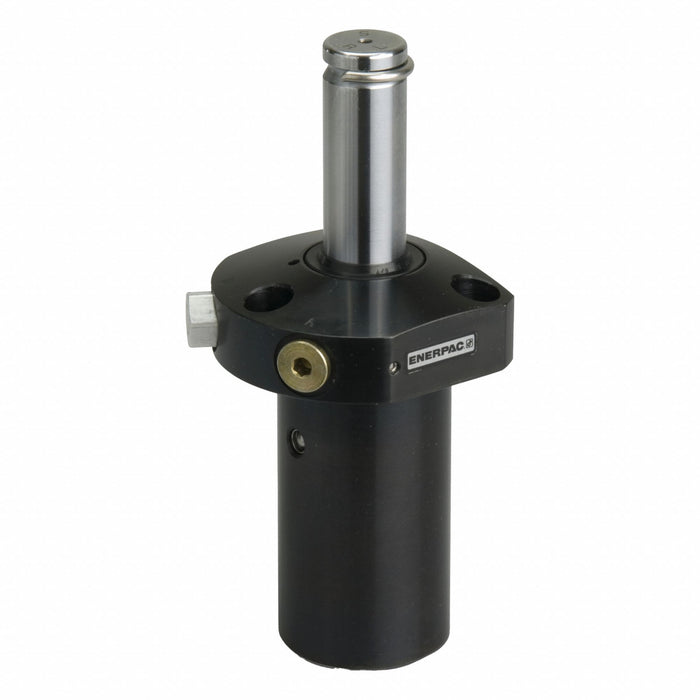

Swing Clamp
SKU 857FE8
Original price
$1,272.79
-
Original price
$1,272.79
Original price
$1,272.79
$1,272.79
-
$1,272.79
Current price
$1,272.79
Swing Clamp Swing Body Material Steel Mounting Style Upper Flange Single Acting/Double Acting Double Acting Turns Right Clamping Force 2 600 lbf Total Stroke 1.85 in Effective Area Clamped 0.63 sq in Clamping Stroke 1.25 in Max Pressure 5 000 psi Swing Angle 90 Degrees Port Size #4 SAE Effective Area Unclamped 1.23 sq in Oil Capacity Clamped 0.97 cu in Oil Capacity Unclamped 2.3 cu in Max Oil Flow 100 cu in/min Pressure Range 500 to 5 000 psi Extended Height 10.85 in
Standard shipping
Estimated delivery time: 7-10 days
Specifications
