by MIMECO

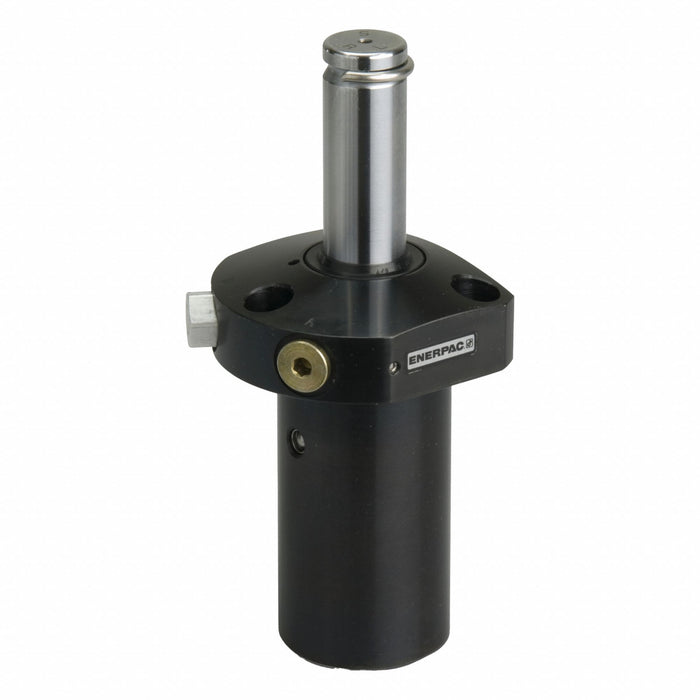

Swing Clamp
SKU 857FE9
Original price
$2,361.88
-
Original price
$2,361.88
Original price
$2,361.88
$2,361.88
-
$2,361.88
Current price
$2,361.88
Swing Clamp Swing Body Material Steel Mounting Style Upper Flange Single Acting/Double Acting Double Acting Turns Right Clamping Force 7 600 lbf Total Stroke 1.91 in Effective Area Clamped 1.92 sq in Clamping Stroke 1.25 in Max Pressure 5 000 psi Swing Angle 90 Degrees Port Size #4 SAE Effective Area Unclamped 3.68 sq in Oil Capacity Clamped 3.53 cu in Oil Capacity Unclamped 6.77 cu in Max Oil Flow 240 cu in/min Pressure Range 500 to 5 000 psi Extended Height 10.61 in
Standard shipping
Estimated delivery time: 7-10 days
Specifications
