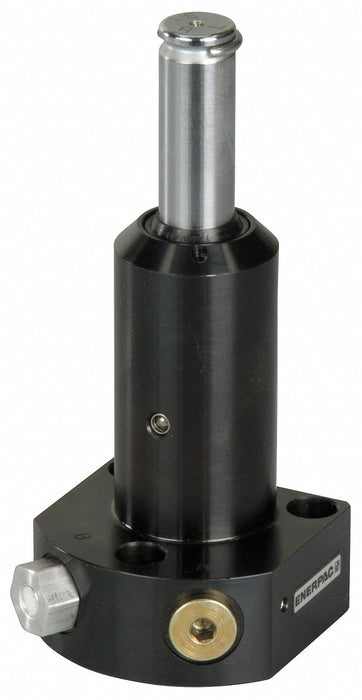

Swing Cylinder Lower Flange 1100 lb.
SKU 5UWU4
Original price
$1,044.21
-
Original price
$1,044.21
Original price
$1,044.21
$1,044.21
-
$1,044.21
Current price
$1,044.21
Swing Clamp Hydraulic Cylinder Swing Body Material Steel Mounting Style Lower Flange Single Acting/Double Acting Single Acting Turns Left Clamping Force 1 100 lbf Total Stroke 0.89 in Effective Area Clamped 0.28 sq in Clamping Stroke 0.39 in Max Pressure 5 000 psi Series SLL Swing Angle 90 Degrees Port Size #4 SAE Oil Capacity Clamped 0.25 cu in Max Oil Flow 25 cu in/min Pressure Range 500 to 5000 psi Extended Height 5.31 in Outside Dia 1.37 in Mounting Hole Dia 0.27 in
Standard shipping
Estimated delivery time: 7-10 days
Specifications
