by MIMECO

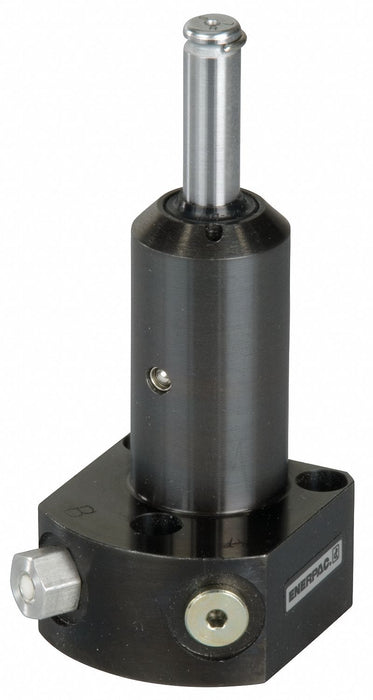

Swing Cylinder Lower Flange 475 lb.
SKU 5UWU0
Original price
$892.50
-
Original price
$892.50
Original price
$892.50
$892.50
-
$892.50
Current price
$892.50
Swing Clamp Hydraulic Cylinder Swing Body Material Steel Mounting Style Lower Flange Single Acting/Double Acting Single Acting Turns Right Clamping Force 475 lbf Total Stroke 0.65 in Effective Area Clamped 0.12 sq in Clamping Stroke 0.32 in Max Pressure 5 000 psi Series SLR Swing Angle 90 Degrees Port Size #2 SAE Oil Capacity Clamped 0.08 cu in Max Oil Flow 12 cu in/min Pressure Range 500 to 5000 psi Extended Height 4.41 in Outside Dia 1.1 in Mounting Hole Dia 0.23 in
Standard shipping
Estimated delivery time: 7-10 days
Specifications
