by MIMECO

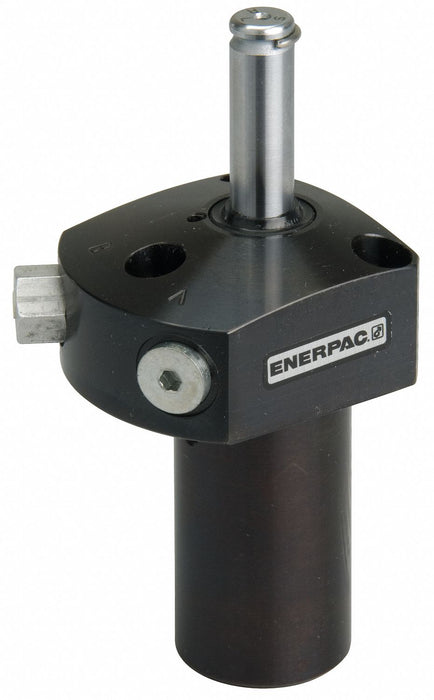

Swing Cylinder Upper Flange 475 lb.
SKU 5UWX2
Original price
$1,187.56
-
Original price
$1,187.56
Original price
$1,187.56
$1,187.56
-
$1,187.56
Current price
$1,187.56
Swing Clamp Hydraulic Cylinder Swing Body Material Steel Mounting Style Upper Flange Single Acting/Double Acting Single Acting Turns Right Clamping Force 475 lbf Total Stroke 0.65 in Effective Area Clamped 0.12 sq in Clamping Stroke 0.32 in Max Pressure 5 000 psi Series SU Swing Angle 90 Degrees Port Size #2 SAE Effective Area Unclamped 0.24 sq in Oil Capacity Clamped 0.08 cu in Oil Capacity Unclamped 0.15 cu in Max Oil Flow 12 cu in/min Pressure Range 500 to 5000 psi
Standard shipping
Estimated delivery time: 7-10 days
Specifications
