by MIMECO

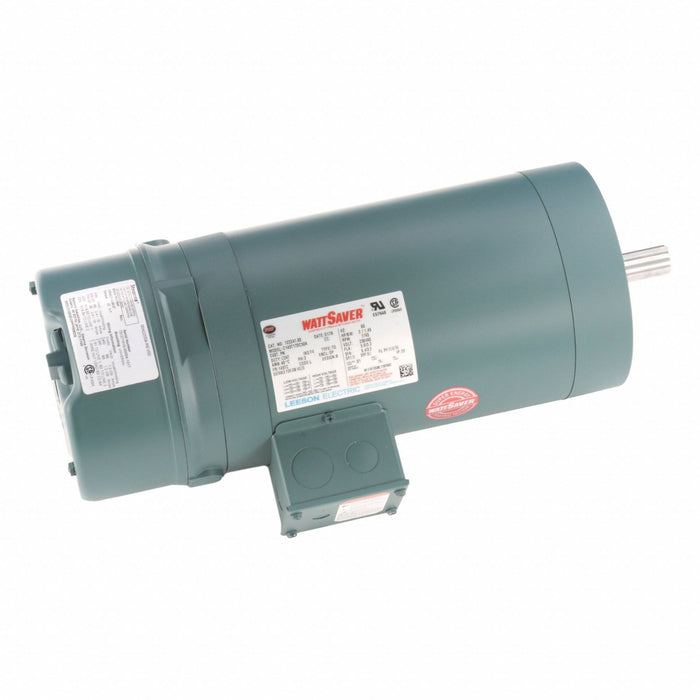

BrakeMotor 2hp 1745RPM 208-230/460VAC
SKU 820H05
Original price
$2,933.80
-
Original price
$2,933.80
Original price
$2,933.80
$2,933.80
-
$2,933.80
Current price
$2,933.80
Brake Motor Three Phase Motor Design Three-Phase 2 hp HP Nameplate RPM 1 745 RPM No of Speeds 1 Voltage 208-230/460V AC 3.0 A Full Load Amps 145TC Frame Usable @ 208V Usable at 208V Usable @ 200V Not Usable at 200V 60 Hz Hz Motor Service Factor 1.15 Motor Thermal Protection None Ins. Class F Max Ambient Temp 40 Degrees C Duty Cycle Continuous Motor Shaft Rotation CW/CCW Motor Enclosure Design Open Drip Proof Motor Mounting Type C-Face Motor Mounting Position Horizontal
Standard shipping
Estimated delivery time: 7-10 days
Specifications
