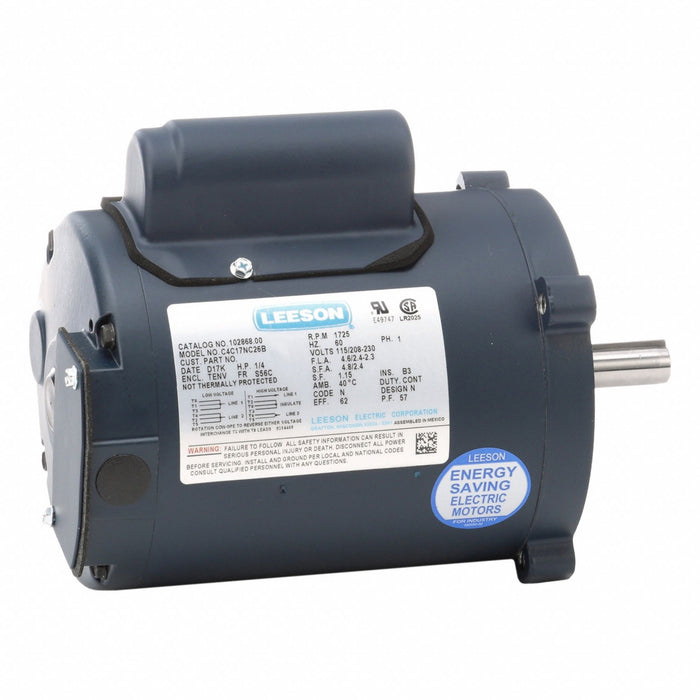

General Purpose Motor 230V Face
SKU 820HN5
Original price
$562.35
-
Original price
$562.35
Original price
$562.35
$562.35
-
$562.35
Current price
$562.35
General Purpose Motor Single Phase Motor Design Capacitor-Start 1/4 hp HP Nameplate RPM 1725 No of Speeds 1 Voltage 115/230V AC Full Load Amps 2.3 A 56C Frame Usable @ 208V Usable at 208V Usable @ 200V Not Usable at 200V Hz 60 Hz Motor Service Factor 1.15 Max Ambient Temp 40 Degrees C Motor Thermal Protection None Duty Cycle Continuous Ins. Class B NEMA Design N Motor Enclosure Design Totally Enclosed Non-Ventilated Motor Shaft Rotation CCWSE Motor Mounting Type C-Face
Standard shipping
Estimated delivery time: 7-10 days
Specifications
