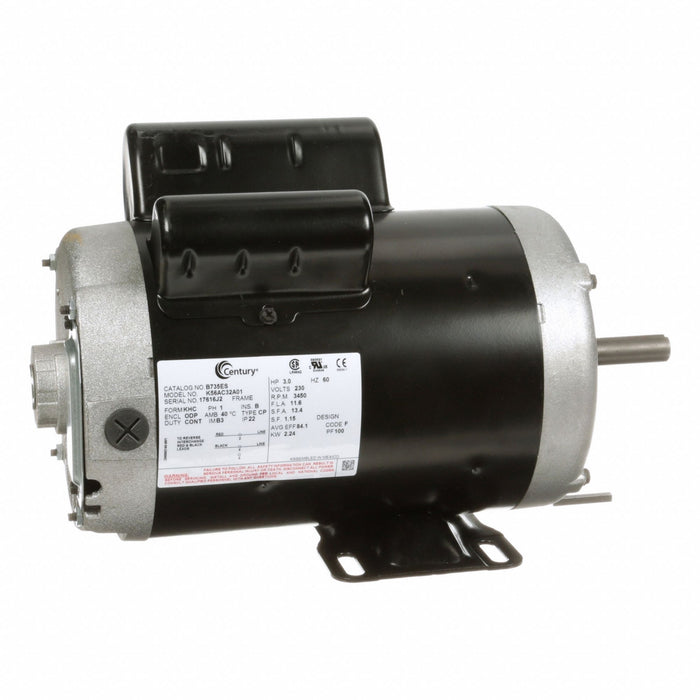

General Purpose Motor 230V Rigid Base
SKU 820HY7
Original price
$1,921.49
-
Original price
$1,921.49
Original price
$1,921.49
$1,921.49
-
$1,921.49
Current price
$1,921.49
General Purpose Motor Single Phase Motor Design Capacitor-Start 3 hp HP Nameplate RPM 3 450 No of Speeds 1 Voltage 230V AC Full Load Amps 11.6 A 56 Frame Usable @ 208V Not Usable at 208V Usable @ 200V Not Usable at 200V Hz 60 Hz Motor Service Factor 1.15 Max Ambient Temp 40 Degrees C Motor Thermal Protection None Duty Cycle Continuous Ins. Class B Motor Enclosure Design Open Drip Proof Motor Shaft Rotation CW/CCW Motor Mounting Type Rigid Base Motor Shaft Design Keyed
Standard shipping
Estimated delivery time: 7-10 days
Specifications
