by MIMECO

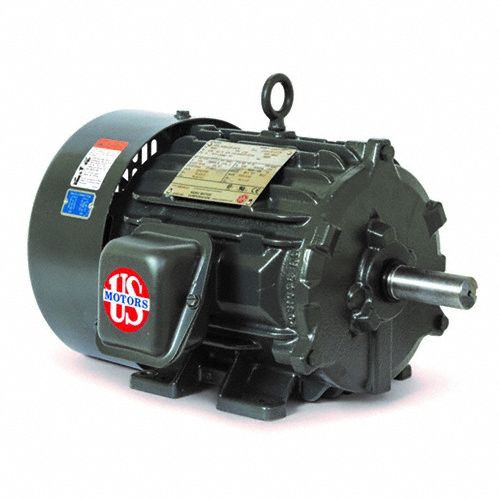

GP Motor 1 HP 1760V RPM 230/460 143TC
SKU 56JA59
Original price
$558.27
-
Original price
$558.27
Original price
$558.27
$558.27
-
$558.27
Current price
$558.27
General Purpose Motor Three-Phase Totally Enclosed Fan Cooled Motor Enclosure Design 1 HP Nameplate RPM 1 760 Frame 143TC Voltage 230/460V AC 60/50 Hz Hz Three Phase Full Load Amps 3/1.5 A Rigid Base Motor Mounting Type Motor Thermal Protection None Ins. Class F Motor Service Factor 1.15 Ball Motor Bearings Motor Frame Material Cast Iron Max Ambient Temp 40 Degrees C CW/CCW Motor Shaft Rotation Nominal Efficiency 85.5 Percent 1 701-1 800 CSA Certified UL Recognized
Standard shipping
Estimated delivery time: 7-10 days
Specifications
