by MIMECO

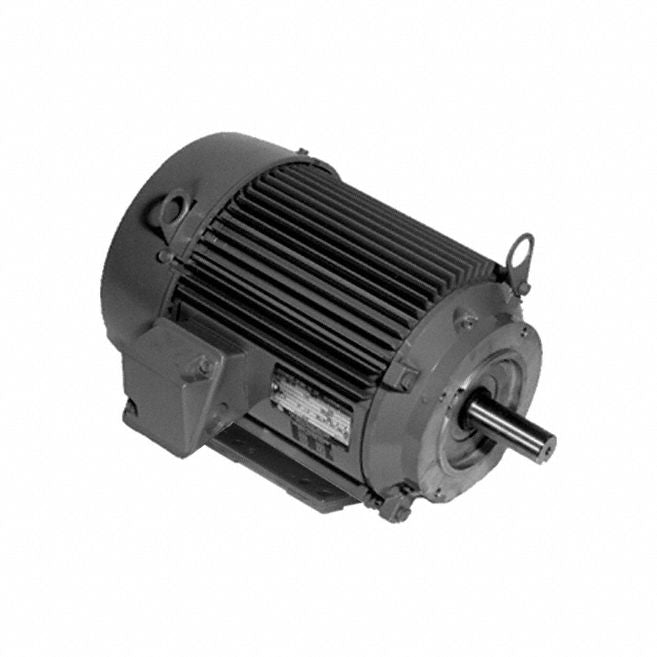

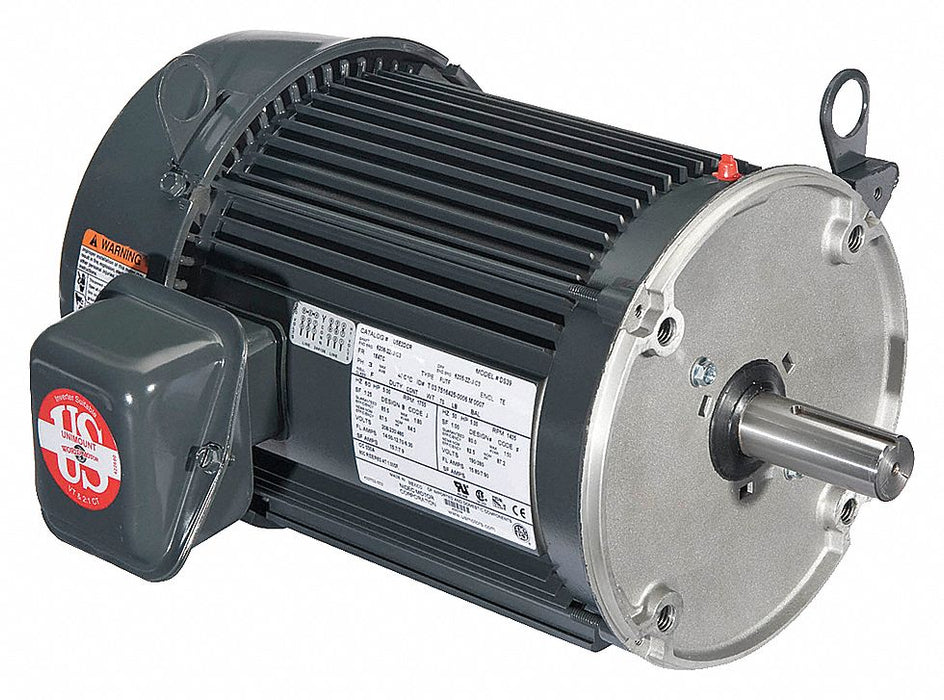

GP Motor 10 HP 1 760 RPM 208-230/460V
SKU 29AJ13
Original price
$1,698.71
-
Original price
$1,698.71
Original price
$1,698.71
$1,698.71
-
$1,698.71
Current price
$1,698.71
General Purpose Motor Three-Phase Totally Enclosed Fan Cooled Motor Enclosure Design 10 HP Nameplate RPM 1760 Frame 215TC Voltage 208-230/460V AC 60/50 Hz Hz Three Phase Full Load Amps 26.5-23.9/12.0 A C-Face Motor Mounting Type Motor Thermal Protection None Ins. Class F Motor Service Factor 1.25 Ball Motor Bearings Motor Frame Material Aluminum Max Ambient Temp 40 Degrees C CW/CCW Motor Shaft Rotation Nominal Efficiency 91.7 Percent Continuous Duty 1701-1800
Standard shipping
Estimated delivery time: 7-10 days
Specifications
