by MIMECO

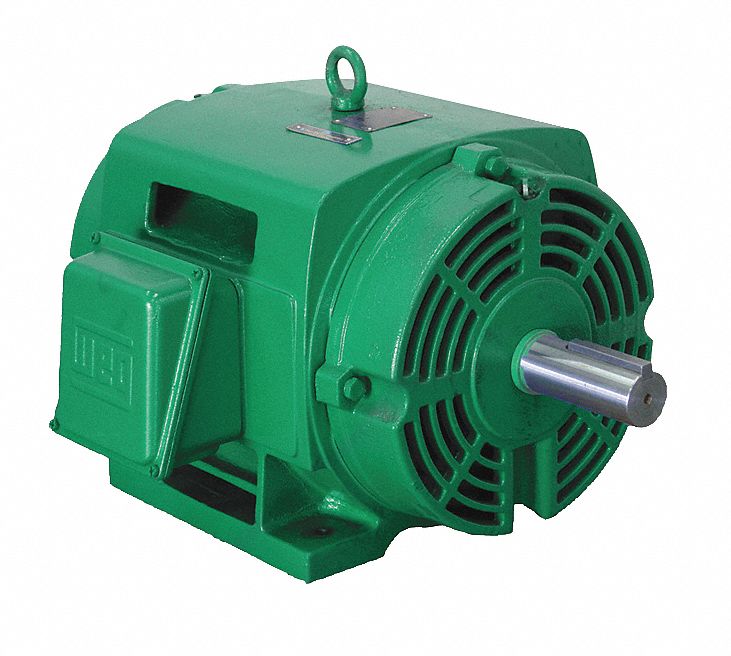

GP Motor 100 HP 3 550 RPM 230/460V 365TS
SKU 1XTZ6
Original price
$9,146.50
-
Original price
$9,146.50
Original price
$9,146.50
$9,146.50
-
$9,146.50
Current price
$9,146.50
General Purpose Motor Three-Phase Open Drip Proof Motor Enclosure Design 100 HP Nameplate RPM 3550 rpm Frame 365TS Voltage 230/460V AC 60 Hz Hz Three Phase Full Load Amps 232.0/116.0 A Rigid Base Motor Mounting Type Motor Thermal Protection None Ins. Class F Motor Service Factor 1.15 Ball Motor Bearings Motor Frame Material Cast Iron Max Ambient Temp 40 Degrees C CW/CCW Motor Shaft Rotation Nominal Efficiency 93.6 Percent Continuous Duty 3001-3600 CE CSA UL
Standard shipping
Estimated delivery time: 7-10 days
Specifications
