by MIMECO

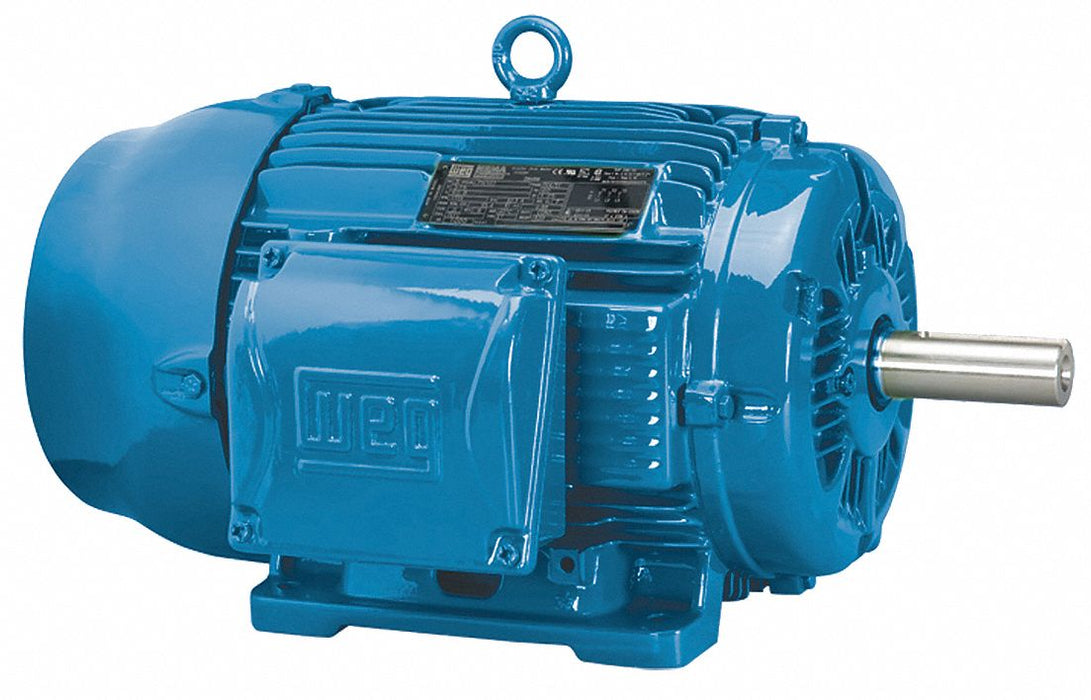

GP Motor 20 HP 1 175 RPM 230/460V 286T
SKU 6AJD3
Original price
$4,596.53
-
Original price
$4,596.53
Original price
$4,596.53
$4,596.53
-
$4,596.53
Current price
$4,596.53
General Purpose Motor Three-Phase Totally Enclosed Fan Cooled Motor Enclosure Design 20 HP Nameplate RPM 1175 rpm Frame 286T Voltage 230/460V AC 60 Hz Hz Three Phase Full Load Amps 48.4/24.2 A Rigid Base Motor Mounting Type Motor Thermal Protection None Ins. Class F Motor Service Factor 1.25 Ball Motor Bearings Motor Frame Material Cast Iron Max Ambient Temp 40 Degrees C CW/CCW Motor Shaft Rotation Nominal Efficiency 91.7 Percent Continuous Duty 1 101-1 200
Standard shipping
Estimated delivery time: 7-10 days
Specifications
