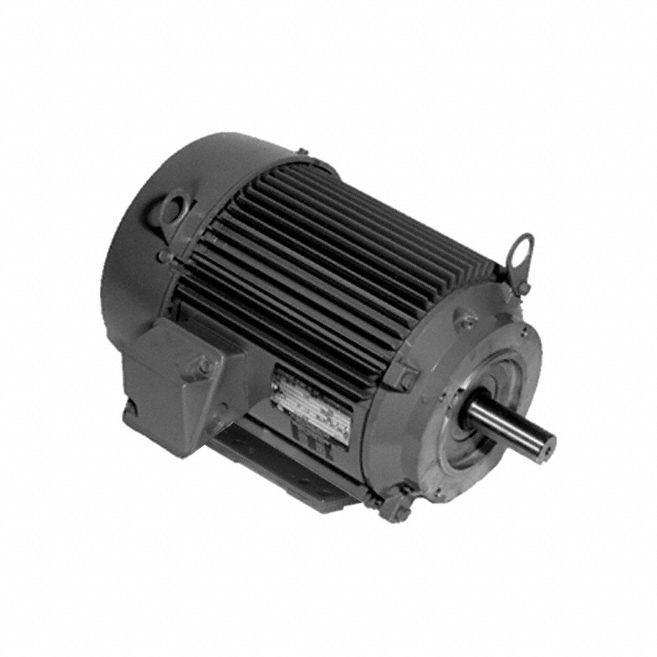

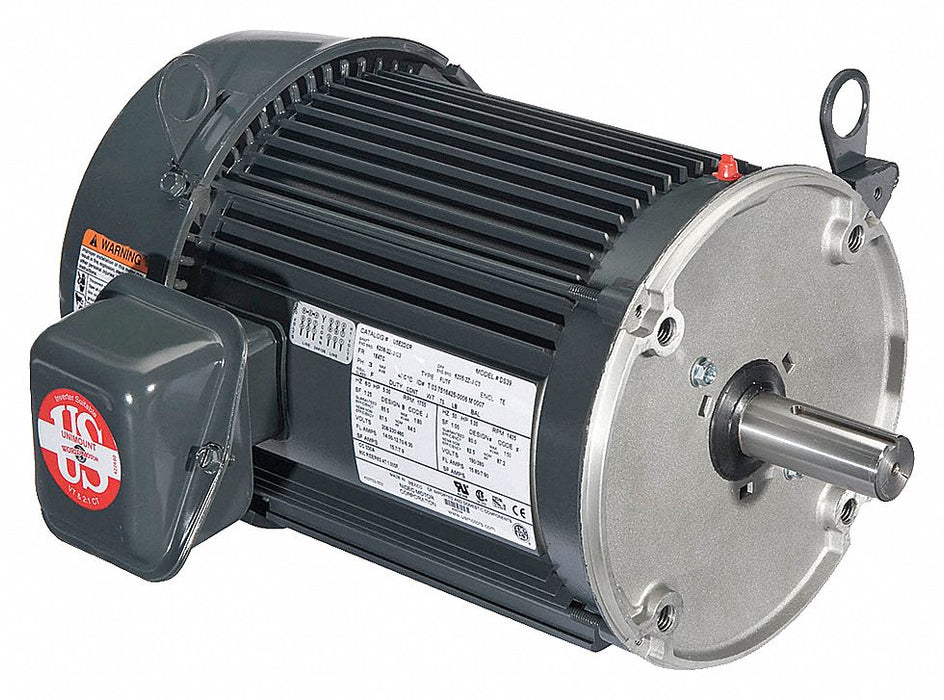

GP Motor 20 HP 3 530 RPM 208-230/460V
SKU 29AJ18
Original price
$3,234.85
-
Original price
$3,234.85
Original price
$3,234.85
$3,234.85
-
$3,234.85
Current price
$3,234.85
General Purpose Motor Three-Phase Totally Enclosed Fan Cooled Motor Enclosure Design 20 HP Nameplate RPM 3530 Frame 256TC Voltage 208-230/460V AC 60/50 Hz Hz Three Phase Full Load Amps 53.0-46.0/23.0 A C-Face Motor Mounting Type Motor Thermal Protection None Ins. Class F Motor Service Factor 1.25 Ball Motor Bearings Motor Frame Material Aluminum Max Ambient Temp 40 Degrees C CW/CCW Motor Shaft Rotation Nominal Efficiency 91 Percent Continuous Duty 3001-3600
Standard shipping
Estimated delivery time: 7-10 days
Specifications
