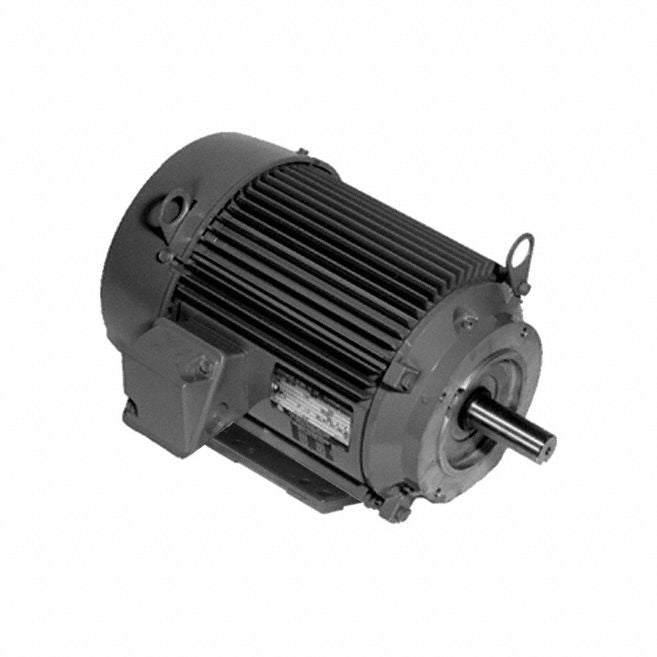

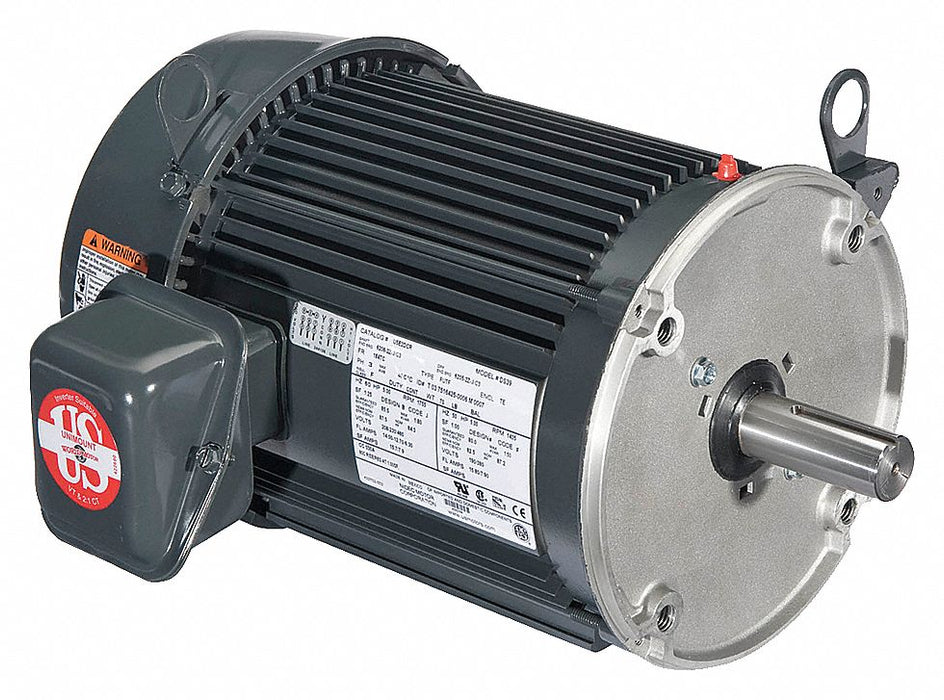

GP Motor 30 HP 1 770 RPM 208-230/460V
SKU 29AJ22
Original price
$4,287.64
-
Original price
$4,287.64
Original price
$4,287.64
$4,287.64
-
$4,287.64
Current price
$4,287.64
General Purpose Motor Three-Phase Totally Enclosed Fan Cooled Motor Enclosure Design 30 HP Nameplate RPM 1 770 Frame 286TC Voltage 208-230/460V AC 60/50 Hz Hz Three Phase Full Load Amps 78.0-73.0/36.0 A C-Face Motor Mounting Type Motor Thermal Protection None Ins. Class F Motor Service Factor 1.25 Ball Motor Bearings Motor Frame Material Aluminum Max Ambient Temp 40 Degrees C CW/CCW Motor Shaft Rotation Nominal Efficiency 93.6 Percent Continuous Duty 1701-1800
Standard shipping
Estimated delivery time: 7-10 days
Specifications
