by MIMECO

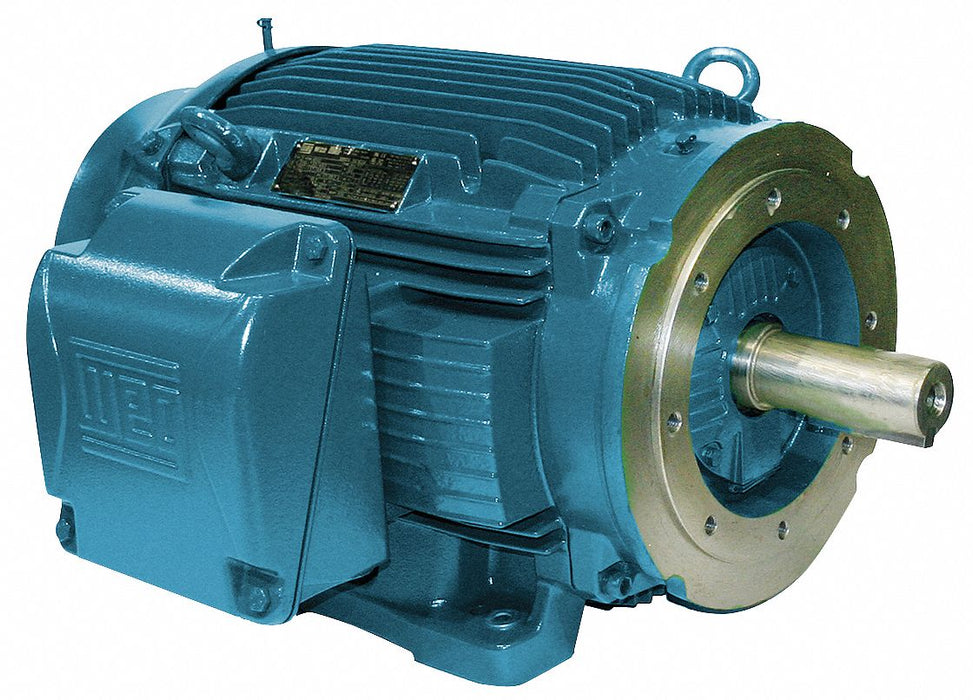

GP Motor 5 HP 3 485 RPM 230/460V 184TC
SKU 6FDR1
Original price
$1,122.47
-
Original price
$1,122.47
Original price
$1,122.47
$1,122.47
-
$1,122.47
Current price
$1,122.47
General Purpose Motor Three-Phase Totally Enclosed Fan Cooled Motor Enclosure Design 5 HP Nameplate RPM 3485 rpm Frame 184TC Voltage 230/460V AC 60 Hz Hz Three Phase Full Load Amps 11.8/5.90 A Rigid Base C-Face Motor Mounting Type Motor Thermal Protection None Ins. Class F Motor Service Factor 1.25 Ball Motor Bearings Motor Frame Material Cast Iron Max Ambient Temp 40 Degrees C CW/CCW Motor Shaft Rotation Nominal Efficiency 88.5 Percent Continuous Duty 3001-3600
Standard shipping
Estimated delivery time: 7-10 days
Specifications
