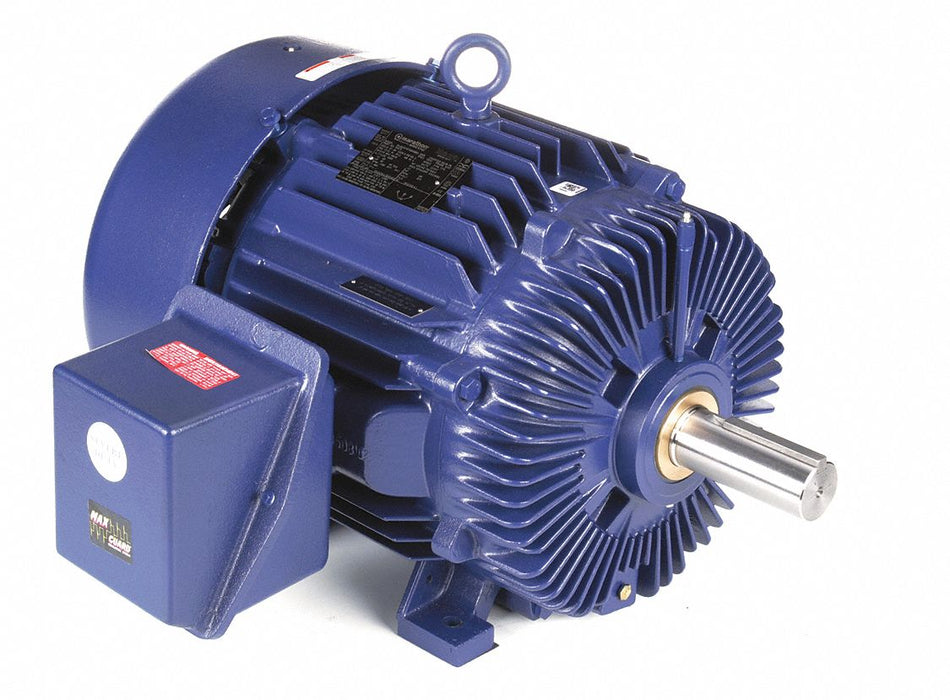

IEEE 841 Motor 40 HP 1 782 RPM 460V 324T
SKU 19RV49
Original price
$7,792.45
-
Original price
$7,792.45
Original price
$7,792.45
$7,792.45
-
$7,792.45
Current price
$7,792.45
IEEE 841 Motor 3-Phase Totally Enclosed Fan-Cooled Motor Enclosure Design 40 HP Nameplate RPM 1782 rpm Frame 324T Voltage 460V AC 60 Hz Hz Three Phase Full Load Amps 47.5 A Rigid Base Motor Mounting Type Motor Thermal Protection None Ins. Class H Motor Service Factor 1.15 Ball Motor Bearings Motor Frame Material Cast Iron Max Ambient Temp 40 Degrees C CW/CCW Motor Shaft Rotation Nominal Efficiency 94.5 Percent Continuous Duty 1701-1800 CE CSA IEEE 841 UL Listed
Standard shipping
Estimated delivery time: 7-10 days
Specifications
