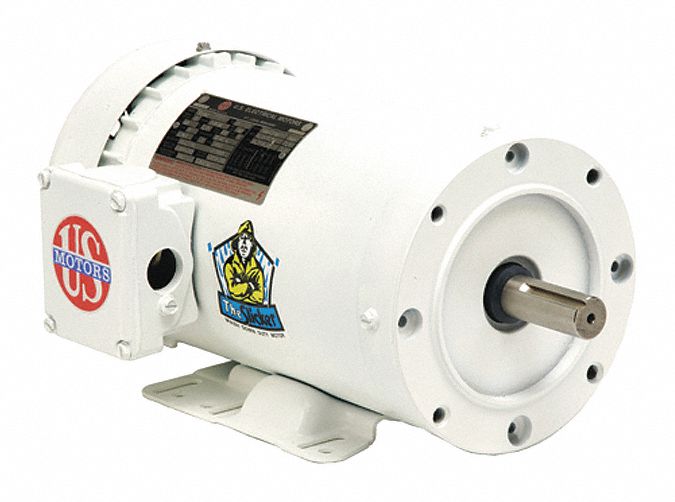

Motor 1 HP 1140 56C 208-230/460V
SKU 56JC53
Original price
$1,233.61
-
Original price
$1,233.61
Original price
$1,233.61
$1,233.61
-
$1,233.61
Current price
$1,233.61
Washdown Motor Single Phase Motor Design 3-Phase 1 HP Nameplate RPM 1 140 No of Speeds 1 Voltage 208-230/460V AC Full Load Amps 3.8-3.8/1.8 A 56C Frame Usable @ 208V Yes Usable @ 200V No 60 Hz Hz Motor Service Factor 1.2 Motor Thermal Protection None Ins. Class F Max Ambient Temp 104 Degrees F NEMA Design None Removable Base No Motor Shaft Rotation CW/CCW Motor Enclosure Design Totally Enclosed Nonventilated Motor Mounting Type Face/Base Finish White Epoxy Paint
Standard shipping
Estimated delivery time: 7-10 days
Specifications
