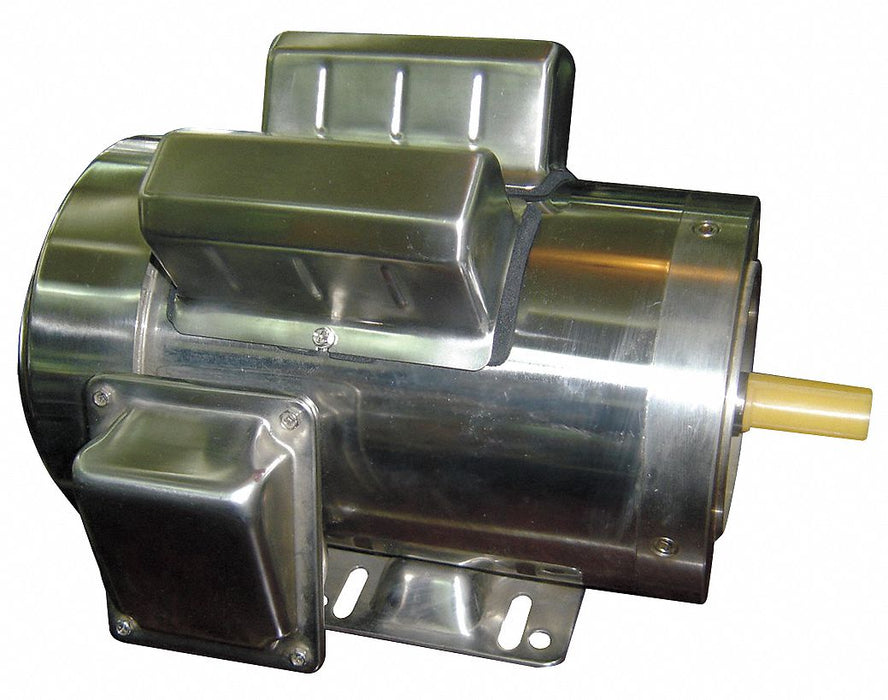

Motor 1 HP 1745 56HC 115/208-230V
SKU 11G254
Original price
$1,007.30
-
Original price
$1,007.30
Original price
$1,007.30
$1,007.30
-
$1,007.30
Current price
$1,007.30
Washdown Motor Single Phase Motor Design Capacitor-Start/Run 1 HP Nameplate RPM 1 745 No of Speeds 1 Voltage 115/208-230V AC Full Load Amps 11.2 /5.8-5.6 A 56HC Frame Usable @ 208V Yes Usable @ 200V No 60 Hz Hz Motor Service Factor 1.15 Motor Thermal Protection None Ins. Class F Max Ambient Temp 40 Degrees C Duty Cycle Continuous NEMA Design B Motor Shaft Rotation CW/CCW Motor Enclosure Design Totally Enclosed Fan-Cooled Motor Mounting Type Face/Base
Standard shipping
Estimated delivery time: 7-10 days
Specifications
