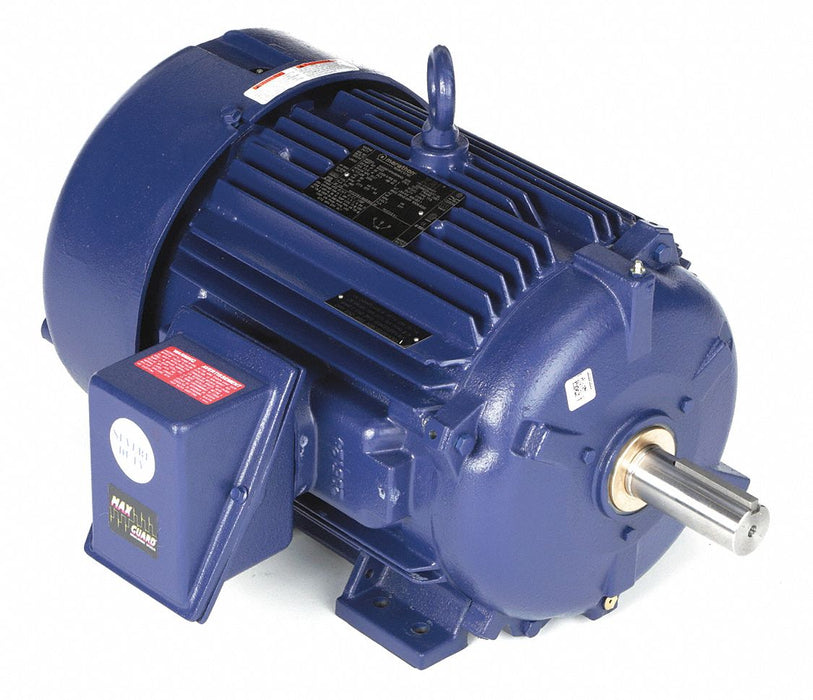

Severe Duty Motor 20 HP 1 768 RPM 460V
SKU 19RV32
Original price
$4,714.45
-
Original price
$4,714.45
Original price
$4,714.45
$4,714.45
-
$4,714.45
Current price
$4,714.45
Severe Duty Motor 3-Phase Totally Enclosed Fan-Cooled Motor Enclosure Design 20 HP Nameplate RPM 1 768 Frame 256T Voltage 460V AC 60 Hz Hz Three Phase Full Load Amps 24.2 A Rigid Base Motor Mounting Type Motor Thermal Protection None Ins. Class H Motor Service Factor 1.15 Ball Motor Bearings Motor Frame Material Cast Iron Max Ambient Temp 40 Degrees C CW/CCW Motor Shaft Rotation Nominal Efficiency 91.7 Percent Continuous Duty 1701-1800 CE CSA IEEE 841 UL Listed
Standard shipping
Estimated delivery time: 7-10 days
Specifications
